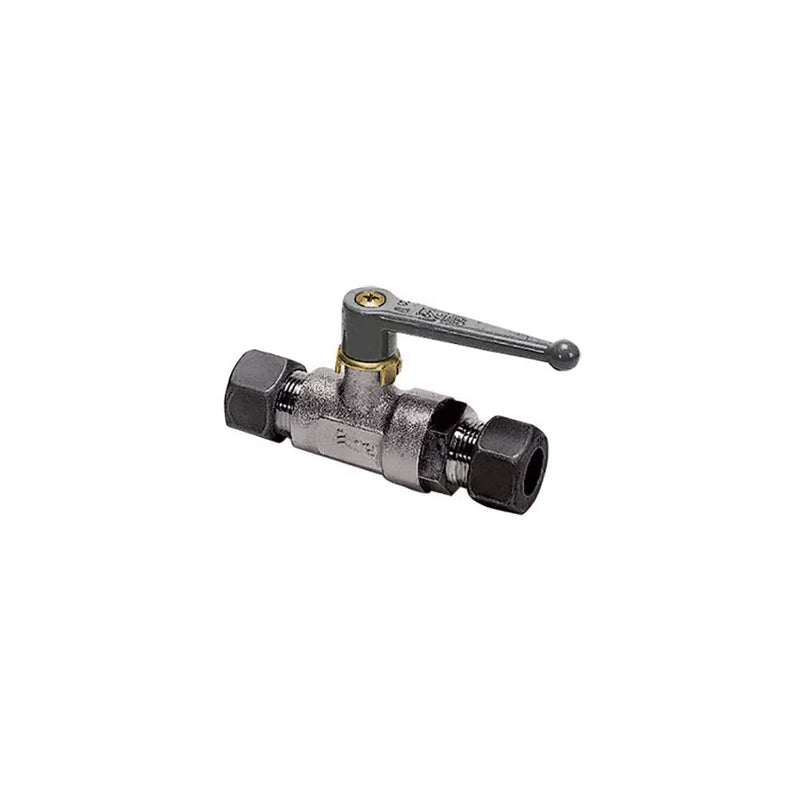

0411 06 08 by Parker | Legris In-Line Ball Valve | 8 mm Tube Size | 17 mm Hex (H) | 19 mm Hex (H1) | 77 mm Valve Length | Straight | Nickel-Plated Brass | Pack of 2

Save $1.75

$95.67

$95.67 - $95.67

$95.67

$93.92

$93.92 - $93.92

$93.92

by Parker Hannifin
Universal Series:0411 2/2 In-Line Ball Valve with Connections for Use with Steel Tubing

Package Quantity: 2 Units

Quantity

Specifications for Variant SKU: 0411 06 08 Parker \| 2 \|
Series:	0411 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Rilsan Graphited, ZAMAK
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Vacuum Resistance, Repositionable Handle, Exchangeable Handle

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum up to 40 bar, depending on the model Working Temperature: -20°C to +80°C up to -40°C with no handle operation
Advantages:	Automatic seal wear compensation Vacuum resistance Ease of operation Short, repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Nickel-plated brass Stem: NBR Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Locking Nut: Nickel-plated brass Wear-compensation seal: NBR Lever: Treated Zamak Lever fixing screw: Zinc-Plated Steel


Part Number	Diameter Nominal (DN)	ØD	F	F1	H	H1	J	L	L1	M	Kg
0411 04 06	4 mm	6 mm	14 mm	19 mm	38 mm	31 mm	19 mm	76 mm	30 mm	48 mm	.173 Kg
0411 06 08	6 mm	8 mm	17 mm	19 mm	38 mm	31 mm	19 mm	77 mm	30 mm	48 mm	.195 Kg
0411 07 10	7 mm	10 mm	19 mm	19 mm	38 mm	31 mm	19 mm	78 mm	31 mm	48 mm	.210 Kg
0411 10 12	10 mm	12 mm	22 mm	24 mm	45 mm	43 mm	24 mm	85 mm	36 mm	69 mm	.310 Kg

Maximum working pressure: 40 bar
