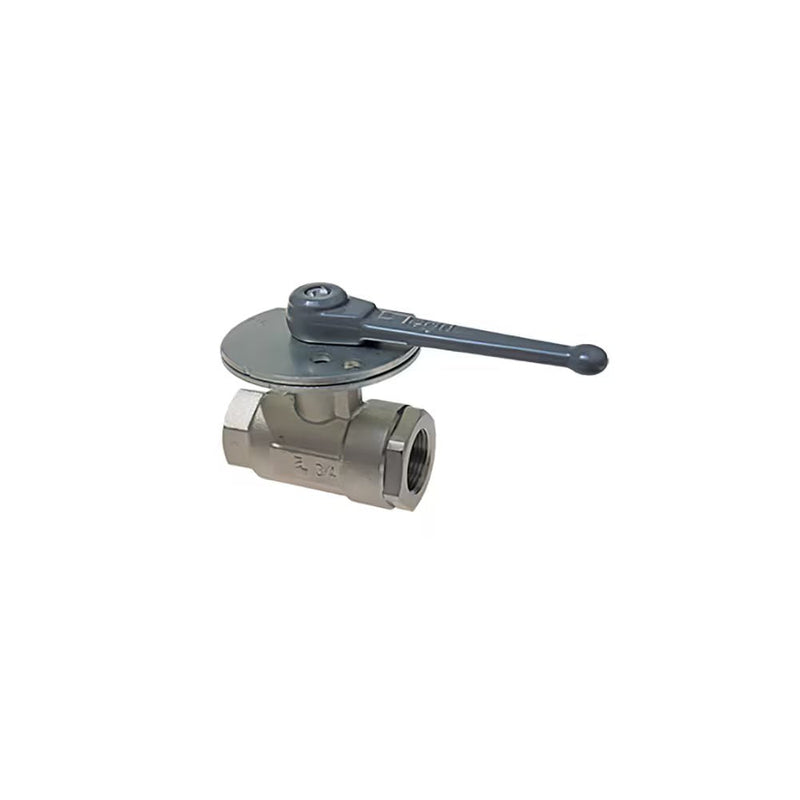

0432 20 27 by Parker | Legris In-Line Lockable Ball Valve | 3/4" Female BSPP Thread | 32 mm Hex (F) | 38 mm Hex (F1) | Straight | Nickel-Plated Brass

Save $2.28

$125.04

$125.04 - $125.04

$125.04

$122.76

$122.76 - $122.76

$122.76

by Parker Hannifin
Universal Series:0432 2/2 In-Line Lockable Ball Valve, Female BSPP Thread

Quantity

Specifications for Variant SKU: 0432 20 27 Parker
Series:	0432 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Rilsan Graphited, ZAMAK, Zinc-Plated Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Vacuum Resistance, Repositionable Handle, Exchangeable Handle

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum up to 40 bar, depending on the model Working Temperature: -20°C to +80°C up to -40°C with no handle operation
Advantages:	Automatic seal wear compensation Vacuum resistance Ease of operation Short, repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Nickel-plated brass Stem: NBR Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Locking Nut: Nickel-plated brass Wear-compensation seal: NBR Lever: Treated Zamak Lever fixing screw: Zinc-Plated Steel


Part Number	Diameter Nominal (DN)	C	E	F	F1	H	H1	L	L1	M	Kg
0432 07 13	7 mm	1/4"	12 mm	19 mm	19 mm	59 mm	54 mm	59 mm	28 mm	69 mm	..396 Kg
0432 10 17	10 mm	3/8"	12 mm	24 mm	24 mm	60 mm	55 mm	59 mm	31 mm	69 mm	.460 Kg
0432 13 21	13 mm	1/2"	15 mm	27 mm	27 mm	62 mm	57 mm	67 mm	34 mm	69 mm	.510 Kg
0432 20 27	20 mm	3/4"	16.5 mm	32 mm	38 mm	66 mm	56 mm	80 mm	39 mm	108 mm	.800 Kg
0432 23 34	23 mm	1"	19 mm	41 mm	46 mm	70 mm	59 mm	94 mm	47 mm	108 mm	1.186 Kg

Maximum working pressure: 40 bar
Handle is not removable.
Fixed and mobile plates: zinc-plated steel.
