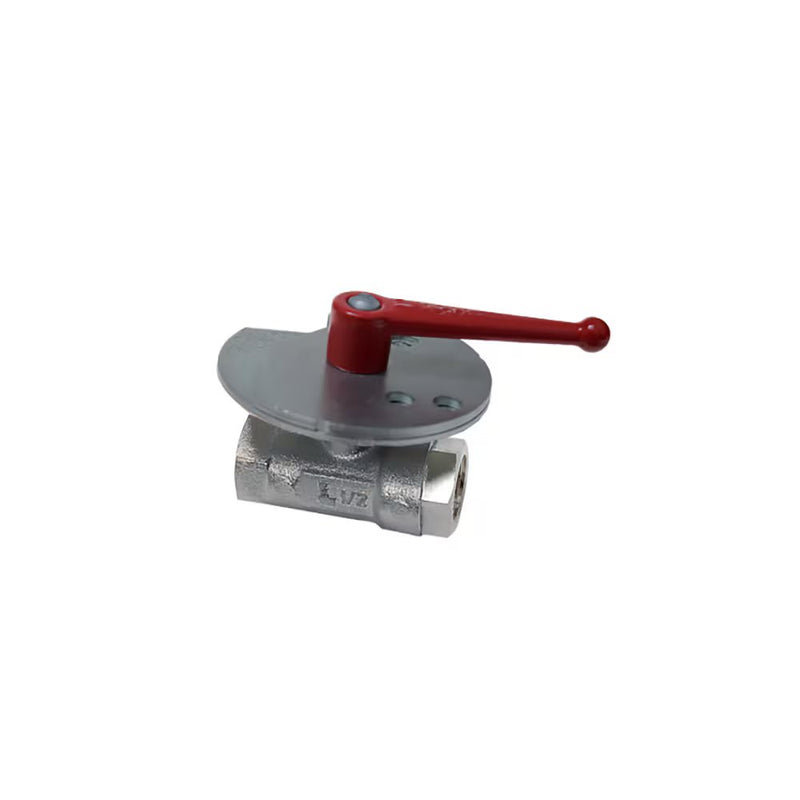

0437 07 13 by Parker | Legris In-Line Vented 3-Point Lockable Ball Valve | 1/4" Female BSPP Thread | 24 mm Hex (F) | 24 mm Hex (F1) | Straight | Nickel-Plated Brass | Pack of 2

Save $4.78

$262.75

$262.75 - $262.75

$262.75

$257.97

$257.97 - $257.97

$257.97

by Parker Hannifin
Universal Series:0437 3/2 In-line Vented 3-Point Lockable Ball Valve, Female BSPP Thread

Package Quantity: 2 Units

Quantity

Specifications for Variant SKU: 0437 07 13 Parker \| 2 \|
Series:	0437 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Rilsan Graphited, ZAMAK, Zinc-Plated Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Vacuum Resistance, Repositionable Handle, Exchangeable Handle

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum up to 40 bar, depending on the model Working Temperature: -20°C to +80°C up to -40°C with no handle operation
Advantages:	Automatic seal wear compensation Vacuum resistance Ease of operation Short, repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Nickel-plated brass Stem: NBR Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Locking Nut: Nickel-plated brass Wear-compensation seal: NBR Lever: Treated Zamak Lever fixing screw: Zinc-Plated Steel


Part Number	Diameter Nominal (DN)	C	E	F	F1	H	L	L1	M	T	Kg
0437 07 13	7 mm	1/4"	12 mm	24 mm	24 mm	60 mm	59 mm	32 mm	69.5 mm	2 mm	.476 Kg
0437 10 17	10 mm	3/8"	12 mm	24 mm	24 mm	60 mm	60 mm	32 mm	69.5 mm	2 mm	.447 Kg
0437 13 21	13 mm	1/2"	15 mm	27 mm	27 mm	60 mm	67.5 mm	34.5 mm	69.5 mm	2 mm	.510 Kg
0437 18 27	18 mm	3/4"	16.5 mm	32 mm	38 mm	69.5 mm	80 mm	39.5 mm	108.5 mm	2.5 mm	.820 Kg
0437 23 34	23 mm	1"	19 mm	41 mm	46 mm	73 mm	94.5 mm	47.5 mm	108.5 mm	3 mm	1.192 Kg

Maximum working pressure: 40 bar
Handle is not removable
Locking plates are zinc-plated steel
