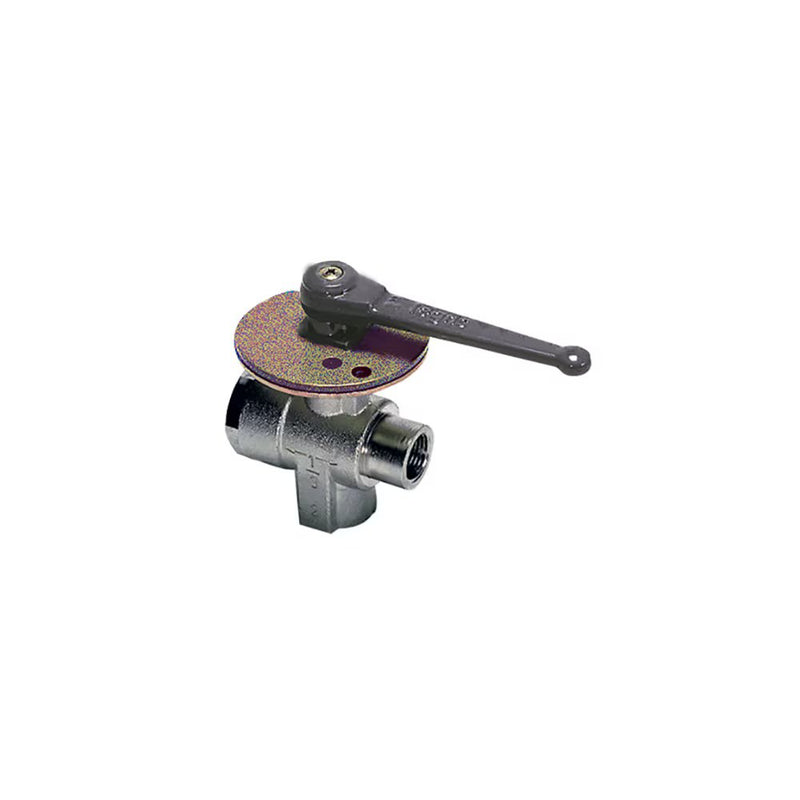

0438 23 34 by Parker | Legris 3-Point Lockable Ball Valve | 1" Female BSPP Thread | 46 mm Hex | 90° Elbow | Nickel-Plated Brass

Save $3.94

$216.35

$216.35 - $216.35

$216.35

$212.41

$212.41 - $212.41

$212.41

by Parker Hannifin
Universal Series:0438 3/2 Right-Angled 3-Point Lockable Ball Valve, Female BSPP Thread

Quantity

Specifications for Variant SKU: 0438 23 34 Parker
Series:	0438 Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Rilsan Graphited, ZAMAK, Zinc-Plated Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Vacuum Resistance, Repositionable Handle, Exchangeable Handle

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum up to 40 bar, depending on the model Working Temperature: -20°C to +80°C up to -40°C with no handle operation
Advantages:	Automatic seal wear compensation Vacuum resistance Ease of operation Short, repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Nickel-plated brass Stem: NBR Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Locking Nut: Nickel-plated brass Wear-compensation seal: NBR Lever: Treated Zamak Lever fixing screw: Zinc-Plated Steel


Part Number	Diameter Nominal (DN)	C	E	F	H	H1	J	L	L1	Kg
0438 09 17	9 mm	3/8"	12 mm	38 mm	76 mm	34 mm	39 mm	73 mm	35 mm	.970 Kg
0438 12 21	12 mm	1/2"	15 mm	38 mm	76 mm	37 mm	39 mm	78 mm	38 mm	.947 Kg
0438 18 27	18 mm	3/4"	16.5 mm	38 mm	76 mm	40 mm	39 mm	80 mm	40 mm	.905 Kg
0438 23 34	23 mm	1"	19 mm	46 mm	80 mm	47 mm	48 mm	94 mm	47 mm	1.295 Kg

Maximum working pressure: 20 bar
Fixed plate: zinc-plated steel, mobile plate: zinc-plated steel
Removable handle: where the handle is obstructed in its movement, it can be refitted opposite
the original position.
