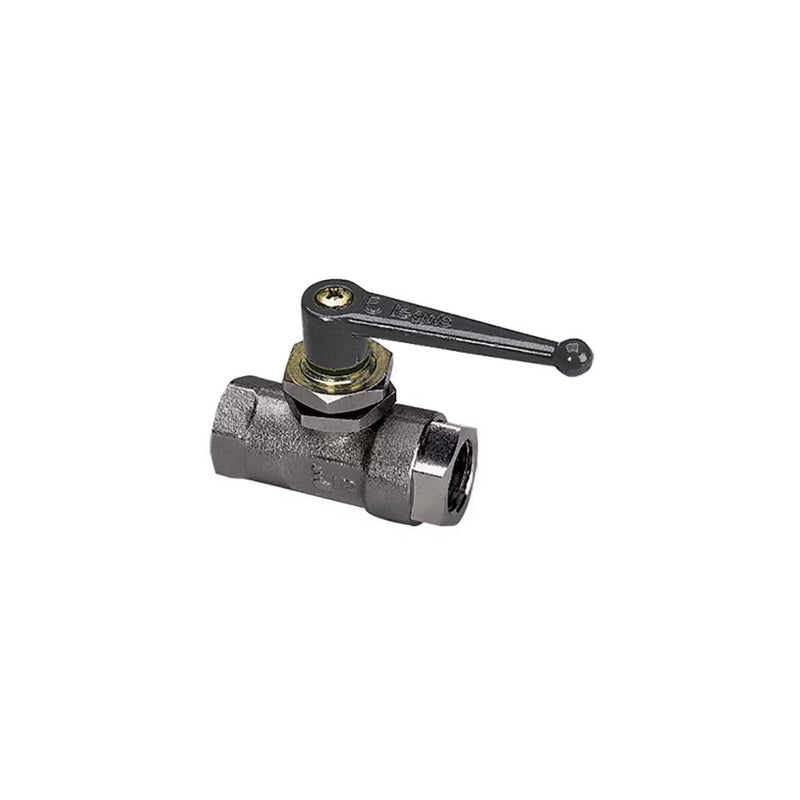

0446 07 13 by Parker | Legris In-Line Panel-Mountable Ball Valve | 1/4" Female BSPP Thread | 19 mm Hex (F) | 24 mm Hex (F1) | Straight | Nickel-Plated Brass | Pack of 2

Save $2.21

$122.24

$122.24 - $122.24

$122.24

$120.03

$120.03 - $120.03

$120.03

by Parker Hannifin
Universal Series:0446 2/2 In-Line Panel-Mountable Ball Valve, Female BSPP Thread

Package Quantity: 2 Units

Quantity

Specifications for Variant SKU: 0446 07 13 Parker \| 2 \|
Series:	0446 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Rilsan Graphited, ZAMAK
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Vacuum Resistance, Repositionable Handle, Exchangeable Handle

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum up to 40 bar, depending on the model Working Temperature: -20°C to +80°C up to -40°C with no handle operation
Advantages:	Automatic seal wear compensation Vacuum resistance Ease of operation Short, repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Nickel-plated brass Stem: NBR Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Locking Nut: Nickel-plated brass Wear-compensation seal: NBR Lever: Treated Zamak Lever fixing screw: Zinc-Plated Steel


Part Number	Diameter Nominal (DN)	C	E	F	F1	H	H1	H2	L	L1	M	T	Kg
0446 04 10*	4 mm	1/8"	8 mm	14 mm	22 mm	37 mm	14 mm	12 mm	44 mm	25 mm	48 mm	16.5 mm	.112 Kg
0446 07 13	7 mm	1/4"	12 mm	19 mm	24 mm	45 mm	19 mm	14 mm	53 mm	28 mm	48 mm	20.5 mm	.188 Kg
0446 10 17	10 mm	3/8"	12 mm	24 mm	24 mm	50 mm	21 mm	21 mm	59 mm	31 mm	69 mm	20.5 mm	.294 Kg
0446 13 21	13 mm	1/2"	15 mm	27 mm	24 mm	51 mm	23 mm	21 mm	67 mm	34 mm	69 mm	20.5 mm	.338 Kg

Maximum working pressure: 20 bar
*For G1/8 version, maximum panel thickness = 3 mm
