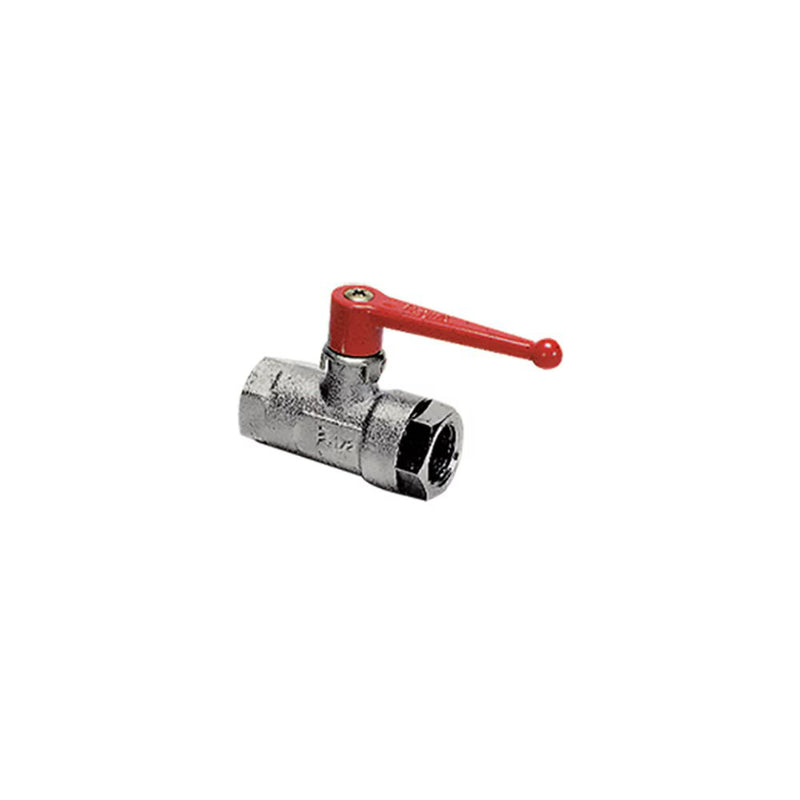

0469 18 27 by Parker | Legris In-Line Vented Ball Valve | 3/4" Female BSPP Thread | 32 mm Hex (F) | 38 mm Hex (F1) | Straight | Nickel-Plated Brass

Save $1.67

$92.31

$92.31 - $92.31

$92.31

$90.64

$90.64 - $90.64

$90.64

by Parker Hannifin
Universal Series:0469 3/2 In-Line Vented Ball Valve, Female BSPP Thread

Quantity

Specifications for Variant SKU: 0469 18 27 Parker
Series:	0469 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Rilsan Graphited, ZAMAK
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Vacuum Resistance, Repositionable Handle, Exchangeable Handle

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum up to 40 bar, depending on the model Working Temperature: -20°C to +80°C up to -40°C with no handle operation
Advantages:	Automatic seal wear compensation Vacuum resistance Ease of operation Short, repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Nickel-plated brass Stem: NBR Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Locking Nut: Nickel-plated brass Wear-compensation seal: NBR Lever: Treated Zamak Lever fixing screw: Zinc-Plated Steel


Part Number	Diameter Nominal (DN)	C	E	F	F1	H	H1	L	L1	M	TM	Kg
0469 04 10	4 mm	1/8"	8 mm	14 mm	14 mm	35 mm	29 mm	44 mm	25 mm	48 mm	1.5 mm	.092 Kg
0469 07 13	7 mm	1/4"	12 mm	24 mm	24 mm	46 mm	43 mm	59 mm	31 mm	70 mm	2 mm	.268 Kg
0469 10 17	10 mm	3/8"	12 mm	24 mm	24 mm	46 mm	43 mm	59 mm	31 mm	70 mm	2 mm	.246 Kg
0469 13 21	13 mm	1/2"	15 mm	27 mm	27 mm	47 mm	44 mm	67 mm	34 mm	70 mm	2 mm	.294 Kg
0469 18 27	18 mm	3/4"	16.5 mm	32 mm	38 mm	63 mm	54 mm	80 mm	39 mm	39 mm	2.5 mm	.668 Kg
0469 23 34	23 mm	1"	19 mm	41 mm	46 mm	67 mm	57 mm	94 mm	47 mm	108 mm	3 mm	1.026 Kg

Maximum working pressure: 40 bar
