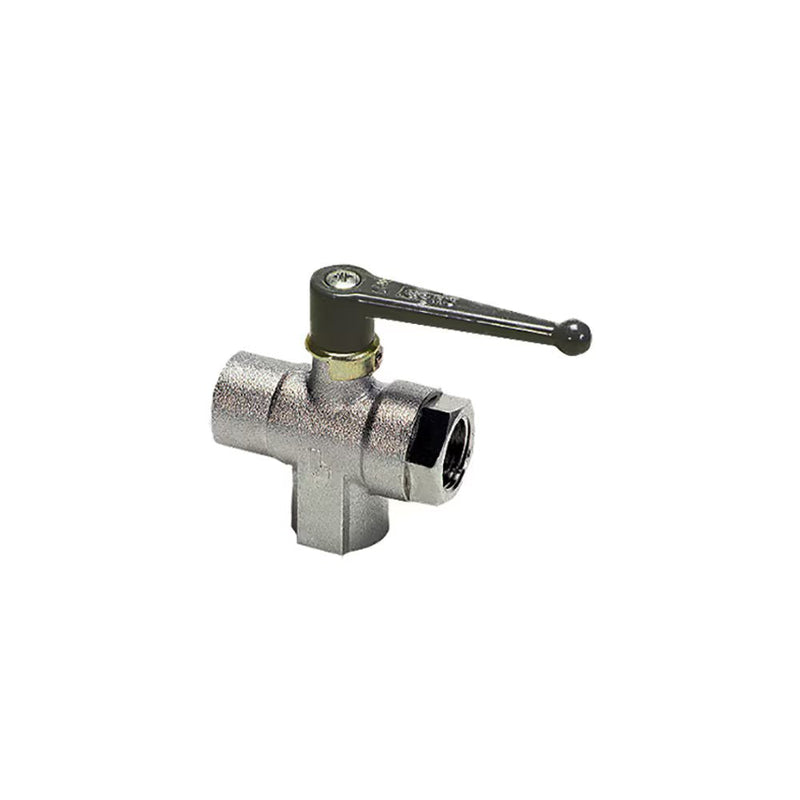

0482 18 27 by Parker | Legris In-Line Ported Ball Valve | 3/4" Female BSPP Thread | 38 mm Hex | Tee | Nickel-Plated Brass

Save $2.40

$132.37

$132.37 - $132.37

$132.37

$129.97

$129.97 - $129.97

$129.97

by Parker Hannifin
Universal Series:0482 3/3 Right-Angle Ported Ball Valve, Female BSPP Thread

Quantity

Specifications for Variant SKU: 0482 18 27 Parker
Series:	0482 Series
Shape (Orientation):	Tee
Material(s):	Nickel-Plated Brass, Rilsan Graphited, ZAMAK
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Vacuum Resistance, Repositionable Handle, Exchangeable Handle

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum up to 40 bar, depending on the model Working Temperature: -20°C to +80°C up to -40°C with no handle operation
Advantages:	Automatic seal wear compensation Vacuum resistance Ease of operation Short, repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Nickel-plated brass Stem: NBR Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Locking Nut: Nickel-plated brass Wear-compensation seal: NBR Lever: Treated Zamak Lever fixing screw: Zinc-Plated Steel


Part Number	Diameter Nominal (DN)	C	E	F	H	H1	H2	J	L	L1	M	Kg
0482 04 10	4 mm	1/8"	8 mm	14 mm	35 mm	29 mm	18 mm	14 mm	44 mm	25 mm	48 mm	.102 Kg
0482 06 13	6 mm	1/4"	12 mm	19 mm	38 mm	31 mm	24 mm	22 mm	53 mm	28 mm	48 mm	.200 Kg
0482 09 17	9 mm	3/8"	12 mm	24 mm	45 mm	43 mm	27 mm	25 mm	59 mm	31 mm	69 mm	.284 Kg
0482 12 21	12 mm	1/2"	15 mm	27 mm	47 mm	44 mm	33 mm	29 mm	67 mm	34 mm	69 mm	.346 Kg
0482 18 27	18 mm	3/4"	16.5 mm	38 mm	59 mm	51 mm	40 mm	39 mm	80 mm	39 mm	108 mm	.742 Kg
0482 23 34	23 mm	1"	19 mm	46 mm	63 mm	55 mm	47 mm	48 mm	94 mm	47 mm	108 mm	1.160 Kg

Maximum working pressure: 20 bar
