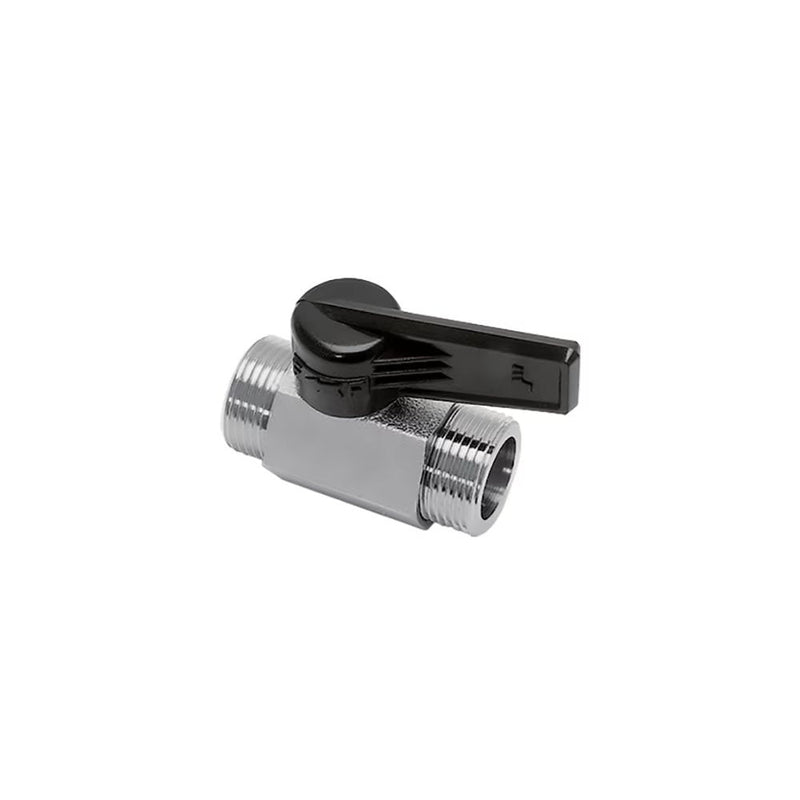

0490 04 13 by Parker | Legris In-Line Ball Valve | 1/4" Male BSPP Thread | 17 mm Hex | 52 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Save $166.49

$416.22

$416.22 - $416.22

$416.22

$249.73

$249.73 - $249.73

$249.73

by Parker Hannifin
Universal Light Series:0490 2/2 In-Line Ball Valve, Male BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0490 04 13 Parker \| 10 \|
Series:	0490 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Rilsan Graphited, ZAMAK, Zinc-Plated Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Repositionable Handle, Exchangeable Handle

Technical Characteristics:	Compatible Fluids: Industrial fluids Working Pressure: Vacuum up to 12 bar Working Temperature: -20°C to +80°C
Advantages:	Compactness Corrosion resistance due to chemical nickel plating Automatic compensation of seal wear Repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Shot-blasted brass or shot-blasted nickel-plated brass Stem: Brass Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Wear-compensation seal: NBR Lever: Polymer or Zamak


Part Number	Diameter Nominal (DN)	C	E	F	H	L	L1	M	Kg
0490 04 13	4 mm	1/4"	7 mm	17 mm	34 mm	39 mm	17 mm	35 mm	.070 Kg
0490 10 21	10 mm	1/2"	10 mm	24 mm	44 mm	53 mm	24 mm	50 mm	.160 Kg

Technical polymer handle

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
