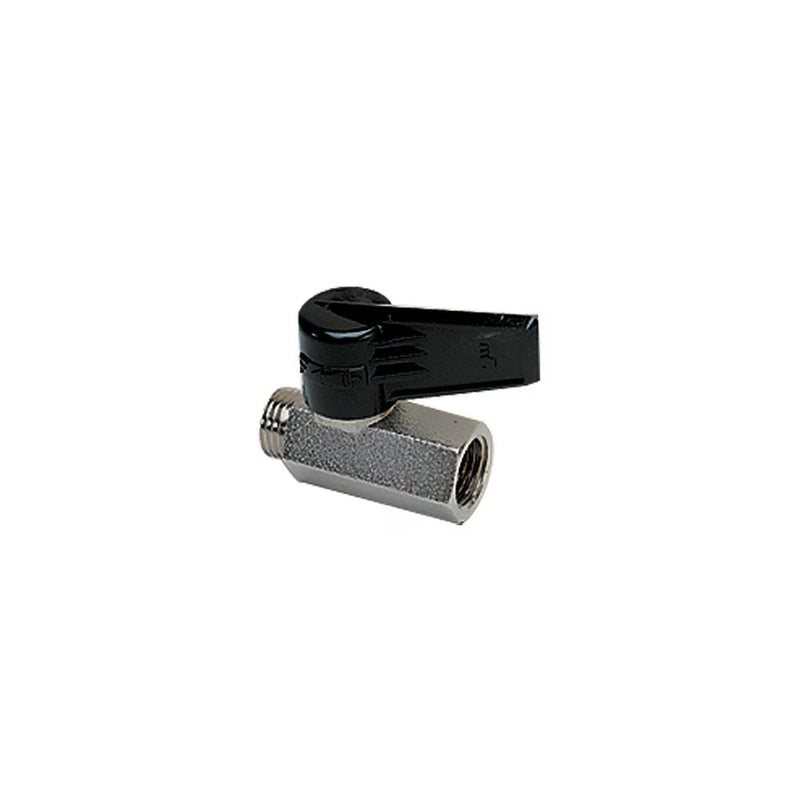

0491 13 27 by Parker | Legris In-Line Ball Valve | 3/4" Male BSPP Thread x 3/4" Female BSPP | 30 mm Hex | 75 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $130.18

$325.45

$325.45 - $325.45

$325.45

$195.27

$195.27 - $195.27

$195.27

by Parker Hannifin
Universal Light Series:0491 2/2 In-Line Ball Valve, Male/Female BSPP Thread

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: 0491 13 27 Parker \| 5 \|
Series:	0491 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Rilsan Graphited, ZAMAK, Zinc-Plated Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Repositionable Handle, Exchangeable Handle

Technical Characteristics:	Compatible Fluids: Industrial fluids Working Pressure: Vacuum up to 12 bar Working Temperature: -20°C to +80°C
Advantages:	Compactness Corrosion resistance due to chemical nickel plating Automatic compensation of seal wear Repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Shot-blasted brass or shot-blasted nickel-plated brass Stem: Brass Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Wear-compensation seal: NBR Lever: Polymer or Zamak


Part Number	Diameter Nominal (DN)	C	E	E1	F	H	L	L1	M	Kg
0491 04 13	4 mm	1/4"	9 mm	7 mm	17 mm	34 mm	39.5 mm	17 mm	35 mm	.070 Kg
0491 07 17	7 mm	3/8"	11 mm	8 mm	22 mm	38 mm	45 mm	20 mm	43 mm	.124 Kg
0491 10 21	10 mm	1/2"	12 mm	10 mm	24 mm	44 mm	53 mm	24 mm	50 mm	.160 Kg
0491 13 27	13 mm	3/4"	14 mm	12 mm	30 mm	46 mm	59 mm	25 mm	50 mm	.238 Kg

Technical polymer handle
