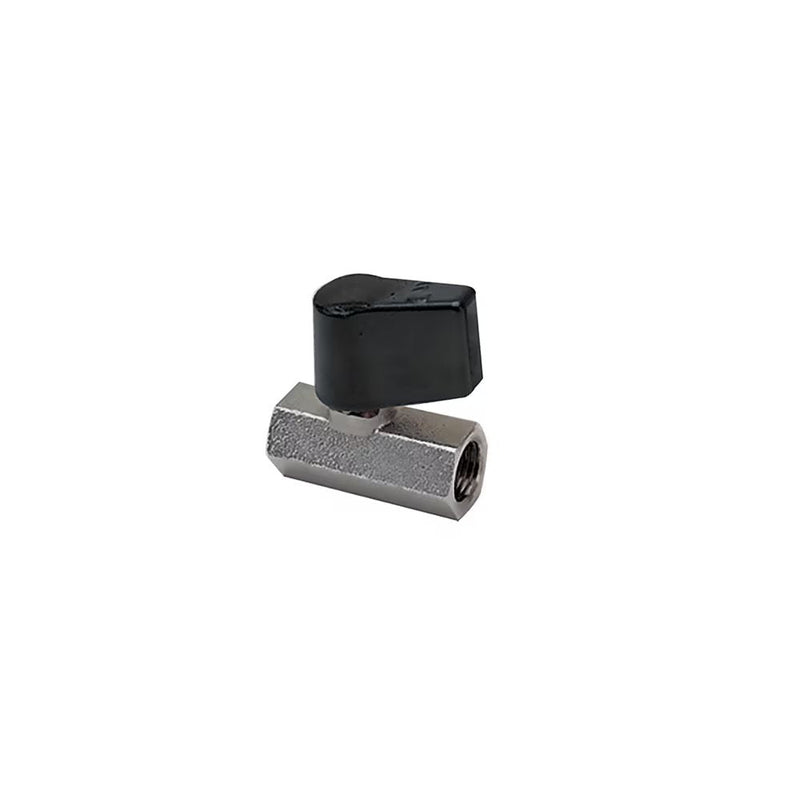

0492 04 13 64 by Parker | Legris In-Line Short Handled Ball Valve | 1/4" Female BSPP Thread | 17 mm Hex | 42 mm Length | Straight | Short | Nickel-Plated Brass | Pack of 10

Save $166.75

$416.88

$416.88 - $416.88

$416.88

$250.13

$250.13 - $250.13

$250.13

by Parker Hannifin
Universal Light Series:0492..64 2/2 In-Line Ball Valve, Short Handle, Female BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0492 04 13 64 Parker \| 10 \|
Series:	0492 64 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Rilsan Graphited, ZAMAK, Zinc-Plated Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Repositionable Handle, Exchangeable Handle, Short

Technical Characteristics:	Compatible Fluids: Industrial fluids Working Pressure: Vacuum up to 12 bar Working Temperature: -20°C to +80°C
Advantages:	Compactness Corrosion resistance due to chemical nickel plating Automatic compensation of seal wear Repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Shot-blasted brass or shot-blasted nickel-plated brass Stem: Brass Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Wear-compensation seal: NBR Lever: Polymer or Zamak


Part Number	Diameter Nominal (DN)	C	E	F	H	L	L1	M	Kg
0492 04 13 64	4 mm	1/4"	9 mm	17 mm	36 mm	39.5 mm	17 mm	25 mm	.090 Kg

Short handle in zamac
