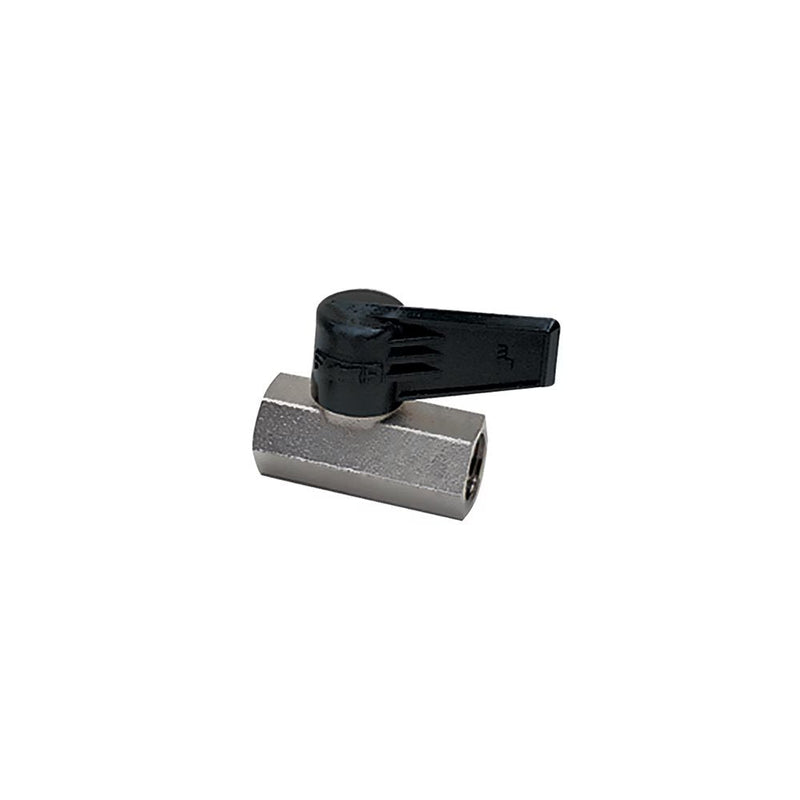

0492 13 27 by Parker | Legris In-Line Ball Valve | 3/4" Female BSPP Thread | 30 mm Hex | 78 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Save $131.38

$328.45

$328.45 - $328.45

$328.45

$197.07

$197.07 - $197.07

$197.07

by Parker Hannifin
Universal Light Series:0492 2/2 In-Line Ball Valve, Female BSPP Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 0492 13 27 Parker \| 5 \|
Series:	0492 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Rilsan Graphited, ZAMAK, Zinc-Plated Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Repositionable Handle, Exchangeable Handle

Technical Characteristics:	Compatible Fluids: Industrial fluids Working Pressure: Vacuum up to 12 bar Working Temperature: -20°C to +80°C
Advantages:	Compactness Corrosion resistance due to chemical nickel plating Automatic compensation of seal wear Repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Shot-blasted brass or shot-blasted nickel-plated brass Stem: Brass Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Wear-compensation seal: NBR Lever: Polymer or Zamak


Part Number	Diameter Nominal (DN)	C	E	F	H	L	L1	M	Kg
0492 04 13	4 mm	1/4"	9 mm	17 mm	34 mm	39.5 mm	17 mm	35 mm	.073 Kg
0492 07 17	7 mm	3/8"	11 mm	22 mm	38 mm	45 mm	20 mm	43 mm	.128 Kg
0492 10 21	10 mm	1/2"	12 mm	24 mm	44 mm	54 mm	25 mm	50 mm	.150 Kg
0492 13 27	13 mm	3/4"	14 mm	30 mm	46 mm	62 mm	28 mm	50 mm	.240 Kg

Technical polymer handle

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
