0499 23 35 by Parker | Universal Series Vented Lockable Ball Valve | 1" Female NPT Thread x 1/4" Female NPT Thread | 1.60" Hex | 90° Elbow | Nickel-Plated Brass

Name: 0499 23 35 by Parker | Universal Series Vented Lockable Ball Valve | 1" Female NPT Thread x 1/4" Female NPT Thread | 1.60" Hex | 90° Elbow | Nickel-Plated Brass
Brand: Parker Fluid Connections Division
SKU: 0499 23 35 Parker
Price: 186.61 USD
Availability: InStock

Save $124.41

$311.02

$311.02 - $311.02

$311.02

$186.61

$186.61 - $186.61

$186.61

by Parker Hannifin
Ball Valves, Universal Series:0499 - double female lockable vented ball valve NPT

Specifications for Variant SKU: 0499 23 35 Parker
Series:	Universal Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Zamak, Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance

Product Features:	Durability & Reliability Automatic seal wear compensation for long-term reliability Robust, corrosion-resistant materials 100% leak-tested in production Date coding to guarantee quality and traceability Versatility & Performance Ideal for ensuring the performance of pneumatic circuits Unequalled performance under vacuum Large range of working pressures and temperatures Lever can be repositioned and replaced Configurations to satisfy all system requirements
Applications:	Pneumatics Vacuum Transportation Packaging Textile Sawmills Rubber & Plastics
Compatible Fluids	Industrial fluids
Working Pressure	Vacuum to 580 psi (40 bar)
Working Temperature	-4° to 176° F (-20° to 80° C)

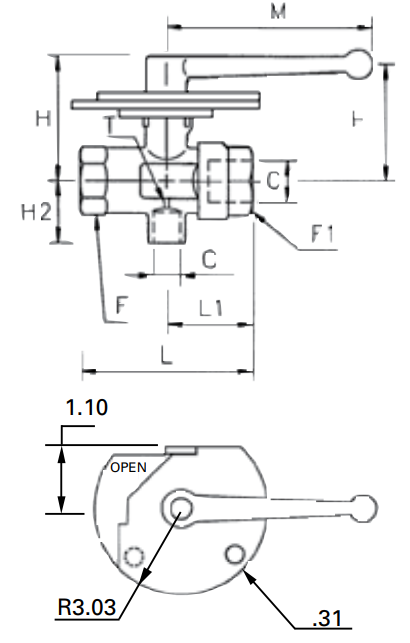

Part Number	NPT (C)	DN	C1	F	F1	H	H1	H2	L	L1	M	T	Oz
0499 10 18	3/8"	.89"	10-32	.94"	.94"	1.79"	1.68"	.66"	2.30"	1.21"	2.69"	.08"	11.71 Oz
0499 13 22	1/2"	.51"	1/8"	1.05"	1.05"	1.83"	1.72"	.94"	2.61"	1.33"	2.69"	.08"	11.39 Oz
0499 18 28	3/4"	.70"	1/4"	1.25"	1.25"	2.46"	2.11"	1.29"	3.12"	1.52"	4.21"	.10"	26.95 Oz
0499 23 35	1"	.90"	1/4"	1.60"	1.60"	2.61"	2.22"	1.44"	3.67"	1.83"	4.21"	.12"	38.74 Oz

These ball valves are OSHA approved

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
