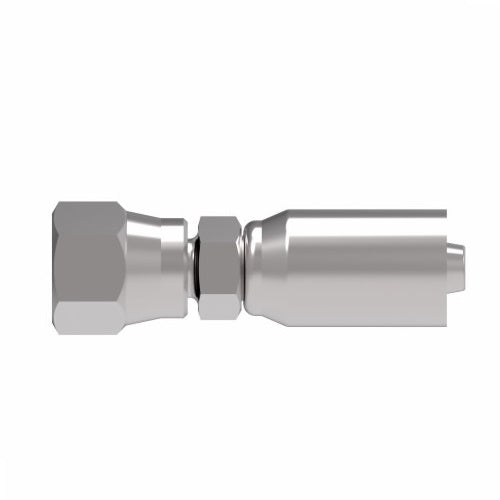

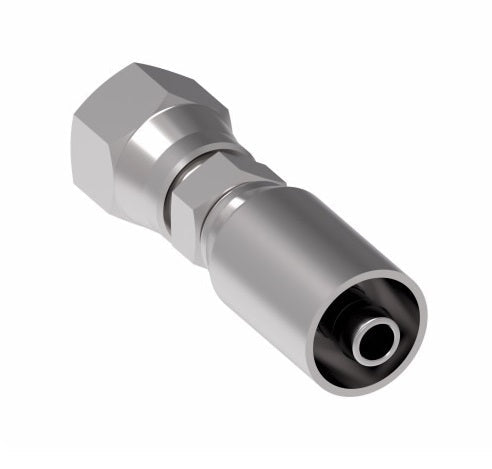

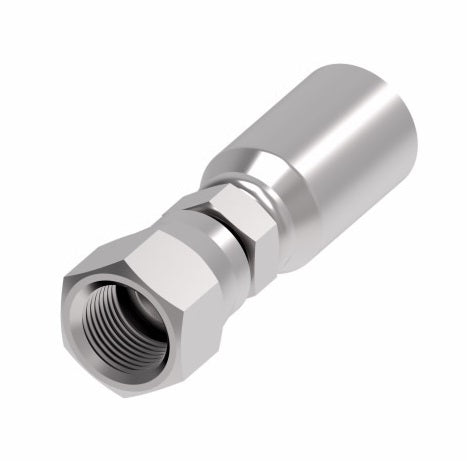

04E-605 Weatherhead by Danfoss | Everflex E Series | Female 37° JIC Swivel Crimp Fitting | -05 Female 37° JIC x -04 Hose Barb | Steel

04E-605 Weatherhead by Danfoss | Everflex E Series | Female 37° JIC Swivel Crimp Fitting | -05 Female 37° JIC x -04 Hose Barb | Steel Pack of 10

$101.40 - $101.40

$101.40

$101.40 - $101.40

$101.40

Weatherhead by Danfoss
Everflex 'E' Series Crimp Fitting - Female 37° JIC Swivel - Straight

Package Quantity: 10 Units

Specifications for Variant SKU: 04E-605 Danfoss \| 10 \|
Brand:	Weatherhead
Series:	Everflex E Series
Shape (Orientation):	Straight
Ends Configuration:	5/16in Female JIC, 1/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	H009 Series \| H243 Series \| H275 Series \| H277 Series \| H285 Series

Applications:
General purpose low and medium pressure hydraulics. Use H277 where shock hazards exist.
Pressure:
Determined by maximum operating pressure for hose size and hose end configuration whichever is lesser.
Material:
Low carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H009, H243, H275, H277, H285
Warning:
For PTFE hose applications, 'E' series fittings must be used with H243 and H277 0.030" thin wall hose only


Steel Part Number	Stainless Steel Part Number	Hose I.D.	Tube Size	Thread Size	A	Hose Cut-Off Factor	Hole Dia.	Hex E	Hex F
03E-604*	03ER-604	3/16"	1/4"	7/16-20	1.89"	1.00"	0.09"	7/16"	9/16"
04E-604*	-	1/4"	1/4"	7/16-20	1.92"	1.13"	0.16"	7/16"	9/16"
04E-605*	-	1/4"	5/16"	1/2-20	2.00"	1.19"	0.16"	1/2"	5/8"
04E-606	-	1/4"	3/8"	9/16-18	2.06"	1.25"	0.16"	9/16"	11/16"
05E-605*	-	5/16"	5/16"	1/2-20	2.07"	1.19"	0.22"	1/2"	5/8"
05E-606	05ER-606	5/16"	3/8"	9/16-18	2.12"	1.19"	0.22"	9/16"	11/16"
06E-606	-	3/8"	3/8"	9/16-18	2.19"	1.25"	0.27"	9/16"	11/16"
06E-608*	-	3/8"	1/2"	3/4-16	2.30"	1.38"	0.27"	3/4"	7/8"
08E-608*	08ER-608	1/2"	1/2"	3/4-16	2.39"	1.38"	0.38"	3/4"	7/8"
08E-610*	-	1/2"	5/8"	7/8-14	2.51"	1.50"	0.38"	7/8"	1"
10E-612	10ER-612	-	-	-	-	-	-	-	-
12E-612	-	3/4"	3/4"	1-1/16-12	2.76"	1.56"	0.61"	1"	1-1/4"
16E-616	-	1"	1"	1-5/16-12	3.05"	1.75"	0.84"	1-1/4"	1-1/2"

* Swivel nuts are universal - both SAE 37° and 45° connections

Note: Drawings may differ from actual parts.
