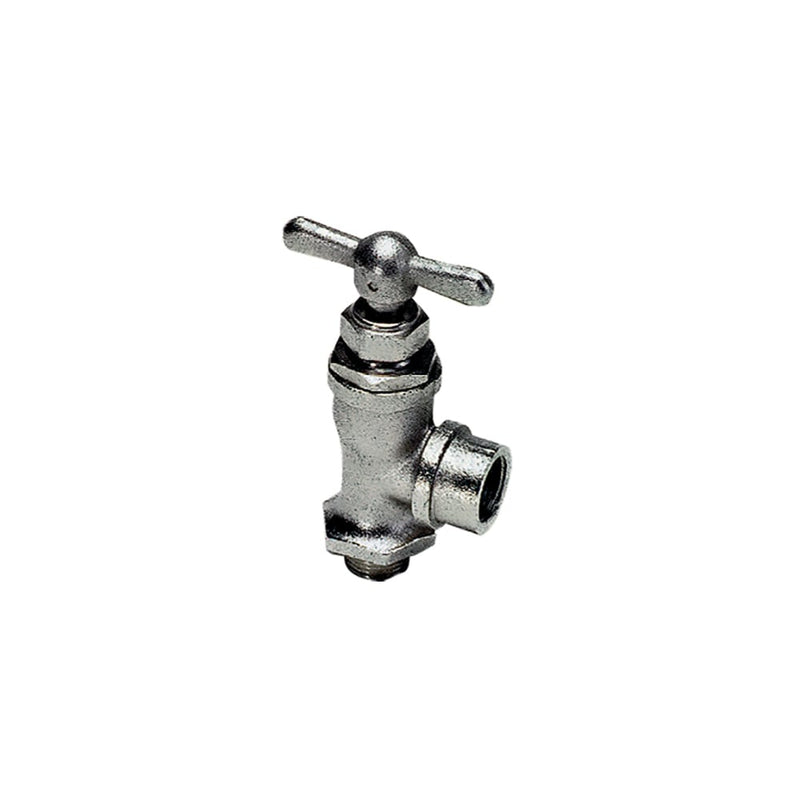

0531 06 17 by Parker | In-Line Needle Valve | 3/8" Male BSPP Thread x 3/8" Female BSPP Thread | 88 mm Length | 90° Elbow | Nickel-Plated Brass

0531 06 17 by Parker | In-Line Needle Valve | 3/8" Male BSPP Thread x 3/8" Female BSPP Thread | 88mm Length | 90° Elbow | Nickel-Plated Brass

Save $22.40 Save $22.40
$174.00
$174.00 - $174.00
$174.00
$151.60
$151.60 - $151.60
$151.60

by Parker Hannifin
Needle Valve Series:0531 Right-Angle Needle Valve, Male/Female BSPP Thread
Specifications for Variant SKU: 0531 06 17 Parker
Series: 0531 Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass, Brass
Special Properties: Silicone Free, Water Hammer Resistance
Technical Characteristics:
  • Compatible Fluids: Compressed air, water, industrial fluids, etc.
  • Working Pressure: 0 to 120 bar
  • Working Temperature: -20°C to +100°C (except model 0510)
Advantages:
  • Manual flow adjustment
  • Numerous valve and safety accessory configurations
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Stem nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Top packing washer: Brass or 316L Stainless Steel (0591)
  • Body: Nickel-plated brass or 316L Stainless Steel (0591)
  • Lever: Zamak, Nickel-plated brass or 316L Stainless Steel (0591)
  • Locking nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Needle: Nickel-plated brass or 316L Stainless Steel (0591)
  • Bottom packing washer: Mineral Fiber
Part Number DN C E E1 H min H max H1 J L Kg
0531 04 10 4 G1/8 7 9 46 52 19 17 19 0.082
0531 06 17 6 G3/8 9.5 12 55 63 25 22 27 0.153
0531 10 21 10 G1/2 13 16 62 72 34 26 33 0.329
