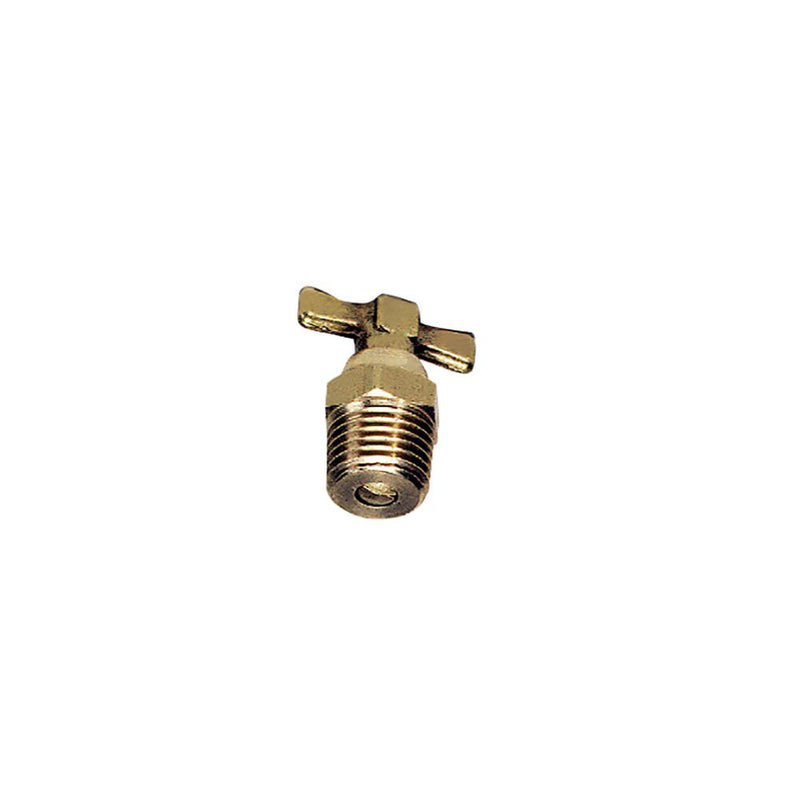

0563 05 14 by Parker | Needle Drain Valve | 1/4" Male BSPT Thread | 14 mm Hex | 32.5 mm Length | Straight | Brass

Save $14.07

$35.18

$35.18 - $35.18

$35.18

$21.11

$21.11 - $21.11

$21.11

by Parker Hannifin
Needle Valve Series:0563 Needle Drain Valve, BSPT Thread

Specifications for Variant SKU: 0563 05 14 Parker
Series:	0563 Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Silicone Free, Water Hammer Resistance

Technical Characteristics:	Compatible Fluids: Compressed air, water, industrial fluids, etc. Working Pressure: 0 to 120 bar Working Temperature: -20°C to +100°C (except model 0510)
Advantages:	Manual flow adjustment Numerous valve and safety accessory configurations
Regulations:	PED RoHS REACH
Component Materials:	Stem nut: Nickel-plated brass or 316L Stainless Steel (0591) Top packing washer: Brass or 316L Stainless Steel (0591) Body: Nickel-plated brass or 316L Stainless Steel (0591) Lever: Zamak, Nickel-plated brass or 316L Stainless Steel (0591) Locking nut: Nickel-plated brass or 316L Stainless Steel (0591) Needle: Nickel-plated brass or 316L Stainless Steel (0591) Bottom packing washer: Mineral Fiber


Part Number	Diameter Nominal (DN)	C	F	H (min)	H (max)	Kg
0563 05 14	5 mm	1/4"	14 mm	28.5 mm	32.5 mm	.032 Kg
