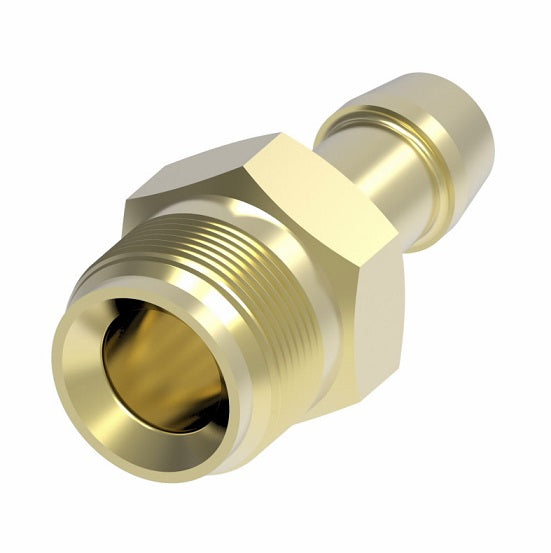

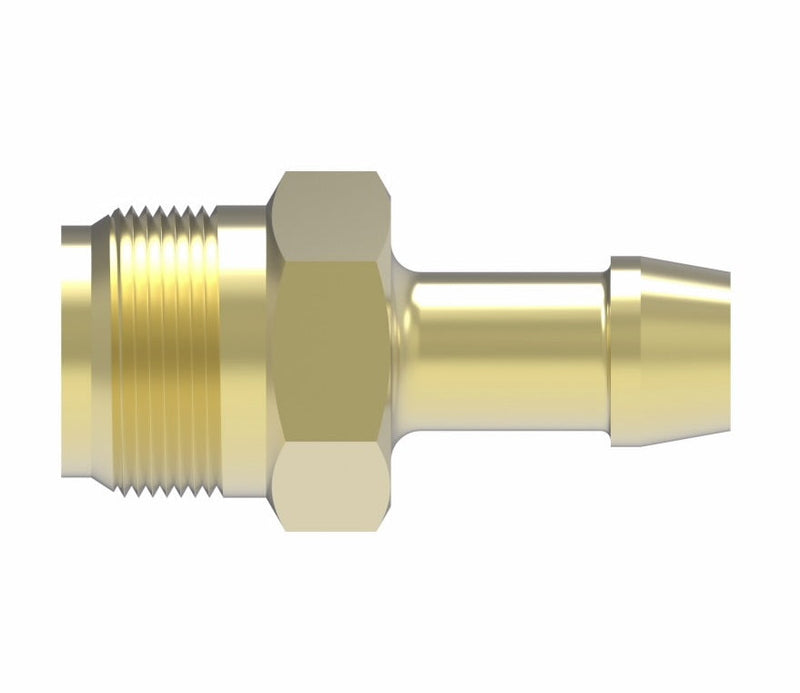

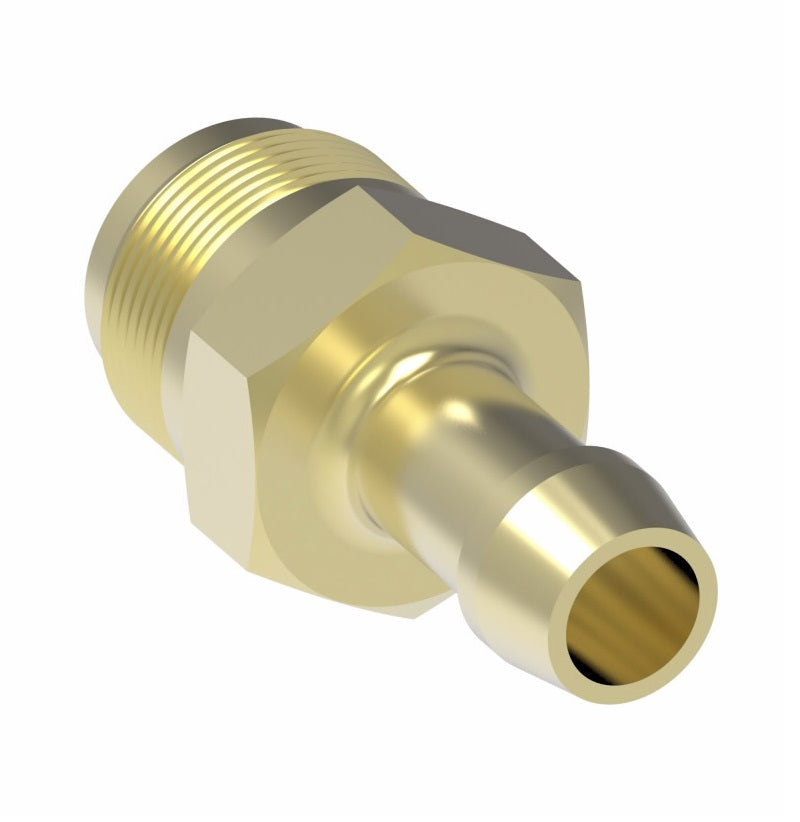

05705B-1598 Weatherhead by Danfoss | Inverted Male Connector Field Attachable Fitting | 057 'B' Series | -04 Male UNF x -05 Reusable Hose End | Brass
05705B-1598 Weatherhead by Danfoss | Inverted Male Connector Field Attachable Fitting | 057 'B' Series | -04 Male UNF x -05 Reusable Hose End | Brass
05705B-1598 Weatherhead by Danfoss | Inverted Male Connector Field Attachable Fitting | 057 'B' Series | -04 Male UNF x -05 Reusable Hose End | Brass
05705B-1598 Weatherhead by Danfoss | Inverted Male Connector Field Attachable Fitting | 057 'B' Series | -04 Male UNF x -05 Reusable Hose End | Brass

05705B-1598 Weatherhead by Danfoss | Inverted Male Connector Field Attachable Fitting | 057 'B' Series | -04 Male UNF x -05 Reusable Hose End | Brass

$12.24 - $12.24
$12.24
$12.24 - $12.24
$12.24

Weatherhead by Danfoss
Field Attachable Fitting - 057 'B' Series - Male UNF x Reusable Hose End - Straight

Ideal Fitting for low pressure air, fuel and oil applications. Generally used for automotive, light truck, and small engine fuel lines.
Specifications for Variant SKU: 05705B-1598 Danfoss
Shape (Orientation): Straight
Material(s): Brass
Compatible with the following Series: H057 Series  |   H0105 Series  |   H0106 Series  |   H115 Series
Advantages:
  • Easy to assemble - just push the Fitting into the hose and clamp. Good selection of configurations at reasonable cost.
Note:
  • Pressure: Determined by maximum working pressure for hose size.
  • Warning: Hose can be cut or damaged if overtightened.
Material:
  • CA360 Brass.
Compatible Hose:
  • H057
  • H0105 - for air applications only.
  • H0106 - for air applications only.
  • H115 - for air applications only.
Assembly instructions:
  • 1. Slide clamp over hose.
  • 2. Insert barbed end of Fitting into hose.
  • 3. Locate band clamp in the middle of 057 'B' Series inserts and tighten.
  • 4. Position wire clamp behind bump on 057 'B' Series insert with H057 hose only.
Brass
Part Number 		Hose I.D. Tube Size
05705B-1598 5/16" 1/4"
05705B-1560 5/16" 5/16"
05705B-1561 5/16" 3/8"
05706B-1568 3/8" 5/16"
05706B-1570 3/8" 3/8"
