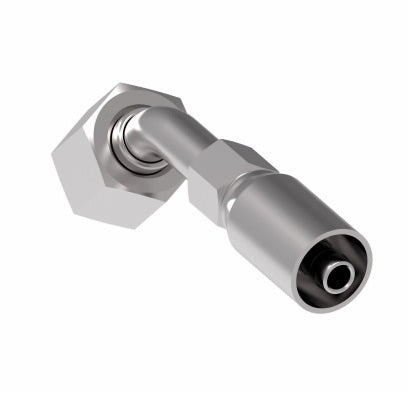

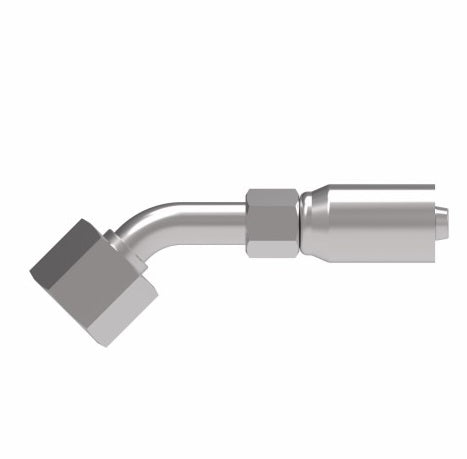

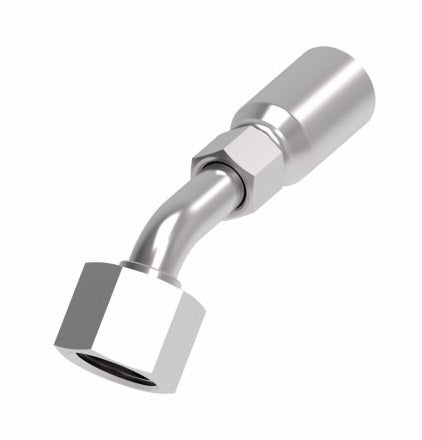

05E-L66 Weatherhead by Danfoss | Everflex E Series | Female ORS Swivel Tube 45° Elbow Crimp Fitting | -06 Female O-Ring Face Seal Swivel x -05 Hose Barb | Steel
05E-L66 Weatherhead by Danfoss | Everflex E Series | Female ORS Swivel Tube 45° Elbow Crimp Fitting | -06 Female O-Ring Face Seal Swivel x -05 Hose Barb | Steel
05E-L66 Weatherhead by Danfoss | Everflex E Series | Female ORS Swivel Tube 45° Elbow Crimp Fitting | -06 Female O-Ring Face Seal Swivel x -05 Hose Barb | Steel
05E-L66 Weatherhead by Danfoss | Everflex E Series | Female ORS Swivel Tube 45° Elbow Crimp Fitting | -06 Female O-Ring Face Seal Swivel x -05 Hose Barb | Steel

05E-L66 Weatherhead by Danfoss | Everflex E Series | Female ORS Swivel Tube 45° Elbow Crimp Fitting | -06 Female O-Ring Face Seal Swivel x -05 Hose Barb | Steel

$17.43 - $17.43
$17.43
$17.43 - $17.43
$17.43

Weatherhead by Danfoss
Everflex 'E' Series Crimp Fitting - Female ORS Swivel Tube - 45° Elbow
Specifications for Variant SKU: 05E-L66 Danfoss
Brand: Weatherhead
Series: Everflex E Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Female O-Ring Face Seal, 5/16in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H009 Series  |   H243 Series  |   H275 Series  |   H277 Series  |   H285 Series
Applications:
  • General purpose low and medium pressure hydraulics.
  • Use H277 where shock hazards exist.
Pressure:
  • Determined by maximum operating pressure for hose size and hose end configuration whichever is lesser.
Material:
  • Low carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H009, H243, H275, H277, H285
Warning:
  • For PTFE hose applications, 'E' series fittings must be used with H243 and H277 0.030" thin wall hose only
Steel
Part Number		 Hose I.D. Tube Size Thread Size A B Hose Cut-Off
Factor		 Hole Dia. Hex
E		 Hex
F
05E-L66 5/16" 3/8" 11/16-16" 2.70" 0.43" 1.75" 0.22" 9/16" 13/16"

Note: Drawings may differ from actual parts.
