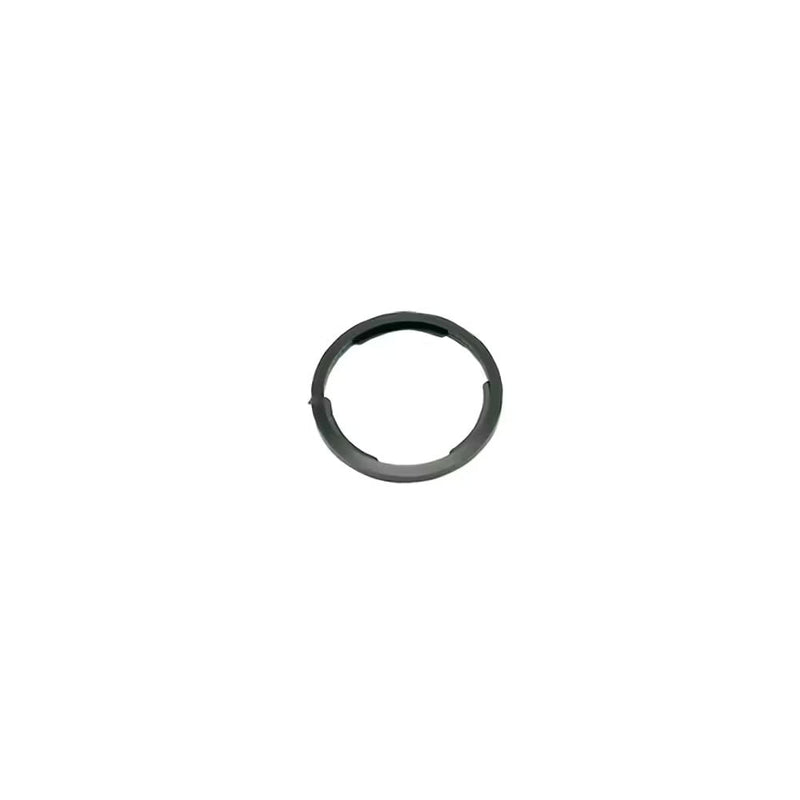

0602 23 10 20 by Parker | Legris Captive Sealing Washer | 1/8" Thread Size | 14 mm OD | Polymer | Pack of 100

Save $15.11

$37.78

$37.78 - $37.78

$37.78

$22.67

$22.67 - $22.67

$22.67

by Parker Hannifin
Sealing Accessories:0602 Captive Sealing Washer

Package Quantity: 100 Units

Specifications for Variant SKU: 0602 23 10 20 Parker \| 100 \|
Series:	0602 Series
Shape (Orientation):	No Orientation
Seal Material(s):	Polymer


Adapters and Manifolds:


Part Number	C	G1	G2	K	Kg
0602 29 93 15	M5x0.8	5.2 mm	7.8 mm	1.5 mm	.001 Kg
0602 23 10 20	1/8"	10.3 mm	14 mm	2 mm	.001 Kg
0602 23 11 20	1/4"	13.7 mm	17.5 mm	2 mm	.001 Kg
0602 23 12 20	3/8"	17.2 mm	21 mm	2 mm	.001 Kg
0602 23 13 20	1/2"	21.5 mm	25.5 mm	2.5 mm	.002 Kg
0602 27 32 20	3/4"	27 mm	32 mm	2.5 mm	.001 Kg

Maximum allowable working pressure: 20 bar
