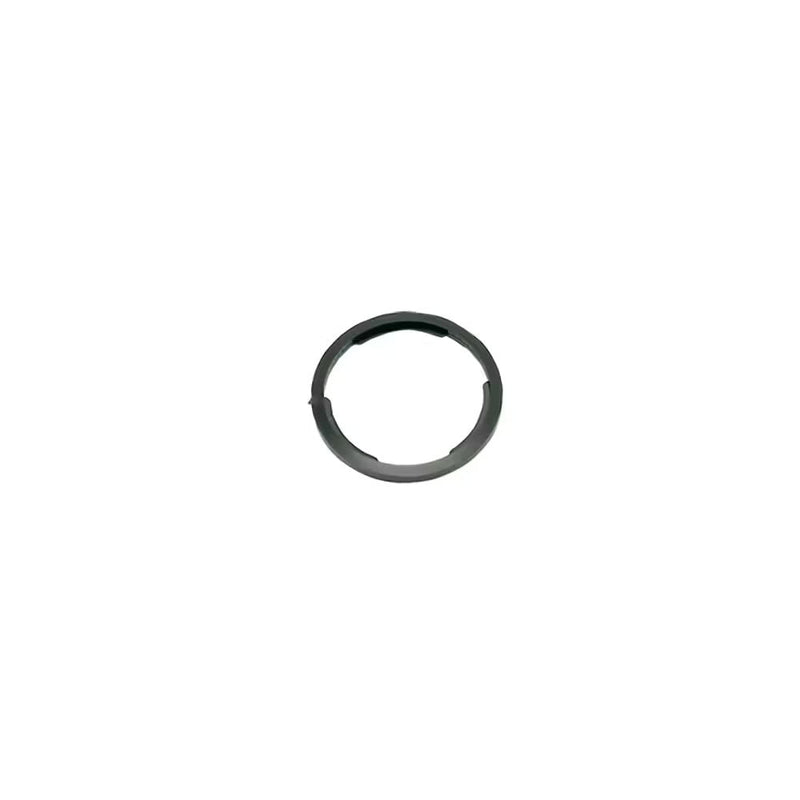

0602 23 11 20 by Parker | Legris Captive Sealing Washer | 1/4" Thread Size | 17.5 mm OD | Polymer | Pack of 100

Save $0.16

$20.16

$20.16 - $20.16

$20.16

$20.00

$20.00 - $20.00

$20.00

by Parker Hannifin
Sealing Accessories:0602 Captive Sealing Washer

Package Quantity: 100 Units

Quantity

Specifications for Variant SKU: 0602 23 11 20 Parker \| 100 \|
Series:	0602 Series
Shape (Orientation):	No Orientation
Seal Material(s):	Polymer


Adapters and Manifolds:


Part Number	C	G1	G2	K	Kg
0602 29 93 15	M5x0.8	5.2 mm	7.8 mm	1.5 mm	.001 Kg
0602 23 10 20	1/8"	10.3 mm	14 mm	2 mm	.001 Kg
0602 23 11 20	1/4"	13.7 mm	17.5 mm	2 mm	.001 Kg
0602 23 12 20	3/8"	17.2 mm	21 mm	2 mm	.001 Kg
0602 23 13 20	1/2"	21.5 mm	25.5 mm	2.5 mm	.002 Kg
0602 27 32 20	3/4"	27 mm	32 mm	2.5 mm	.001 Kg

Maximum allowable working pressure: 20 bar

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
