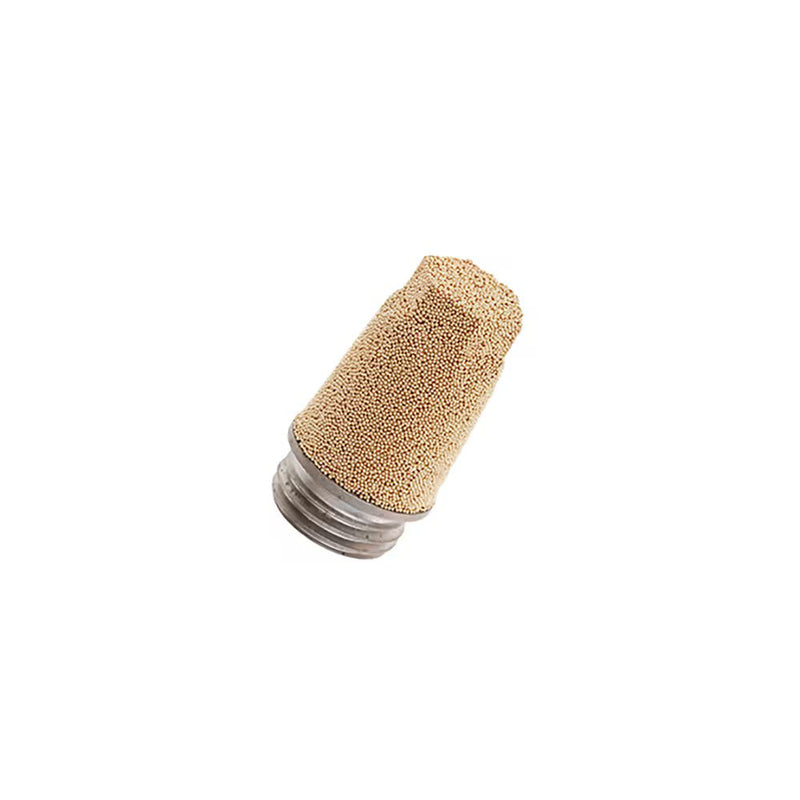

0670 00 17 by Parker | Legris Silencer | G3/8" Male BSPP Thread | 37 mm Length | Bronze

0670 00 17 by Parker | Legris Silencer | G3/8" Male BSPP Thread | 37 mm Length | Bronze | Pack of 10

Save $20.75 Save $20.75
$161.95
$161.95 - $161.95
$161.95
$141.20
$141.20 - $141.20
$141.20

by Parker Hannifin
Silencers:0670 Threaded Silencer, Male BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0670 00 17 Parker | 10 |
Series: 0670 Series
Shape (Orientation): No Orientation
Material(s): Bronze
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Polyethylene: 0 to 10 bar
    Sintered bronze: 0 to 12 bar
    316L Stainless Steel:     0 to 12 bar
  • Working Temperature: Polyethylene: -10°C to +80°C
    Sintered bronze: -20°C to +150°C
    316L Stainless Steel:     -20°C to +180°C
Advantages:
      3 materials available
      - Polyethylene: optimum exhaust flow rate and noise attention
      - Sintered bronze: robust and economic
      - 316L stainless Steel: increased chemical and mechanical resistance
  • incorporated flow control regulator on 2 versions
Regulations:
  • RoHS
  • PED
  • REACH
  • 2003/10/CE
  • OSHA
Component Materials:
  • Body: Brass (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
  • Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
Part Number UNF/NPT (C) J G L L1 Wt (Oz)
0670 00 10 G1/8" 7 mm 12 mm 20.5 mm 15 mm .007 Kg
0670 00 13 G1/4" 8 mm 15 mm 24.5 mm 18.5 mm .013 Kg
0670 00 17 G3/8" 10 mm 19 mm 37 mm 29 mm .033 Kg
0670 00 21 G1/2" 14 mm 23 mm 40 mm 31 mm .049 Kg
0670 00 27 G3/4" 16.5 mm 39.5 mm 51 mm 40.5 mm .092 Kg
0670 00 34 G1" 20 mm 36 mm 60 mm 49.5 mm .140 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
