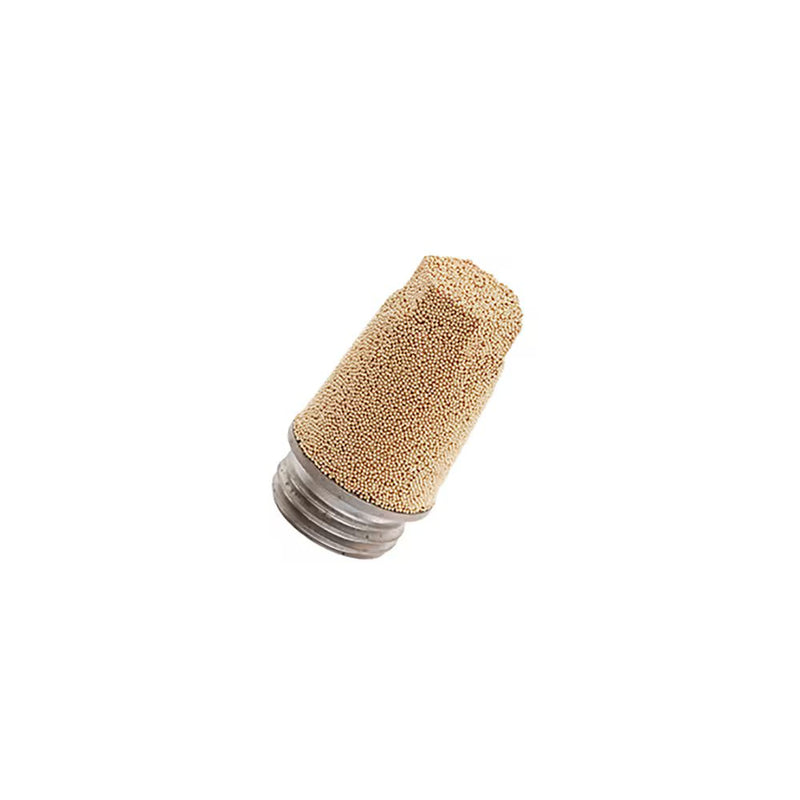

0670 00 27 by Parker | Legris Silencer | G3/4" Male BSPP Thread | 51 mm Length | Bronze | Pack of 10

Save $5.25

$286.85

$286.85 - $286.85

$286.85

$281.60

$281.60 - $281.60

$281.60

by Parker Hannifin
Silencers:0670 Threaded Silencer, Male BSPP Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 0670 00 27 Parker \| 10 \|
Series:	0670 Series
Shape (Orientation):	No Orientation
Material(s):	Bronze
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Polyethylene: 0 to 10 bar Sintered bronze: 0 to 12 bar 316L Stainless Steel: 0 to 12 bar Working Temperature: Polyethylene: -10°C to +80°C Sintered bronze: -20°C to +150°C 316L Stainless Steel: -20°C to +180°C
Advantages:	3 materials available - Polyethylene: optimum exhaust flow rate and noise attention - Sintered bronze: robust and economic - 316L stainless Steel: increased chemical and mechanical resistance incorporated flow control regulator on 2 versions
Regulations:	RoHS PED REACH 2003/10/CE OSHA
Component Materials:	Body: Brass (0670-0673-0675-0671-0677-0672) Polymer (0674-0676) Stainless Steel (0682-0683) Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672) Polymer (0674-0676) Stainless Steel (0682-0683)


Part Number	UNF/NPT (C)	J	G	L	L1	Wt (Oz)
0670 00 10	G1/8"	7 mm	12 mm	20.5 mm	15 mm	.007 Kg
0670 00 13	G1/4"	8 mm	15 mm	24.5 mm	18.5 mm	.013 Kg
0670 00 17	G3/8"	10 mm	19 mm	37 mm	29 mm	.033 Kg
0670 00 21	G1/2"	14 mm	23 mm	40 mm	31 mm	.049 Kg
0670 00 27	G3/4"	16.5 mm	39.5 mm	51 mm	40.5 mm	.092 Kg
0670 00 34	G1"	20 mm	36 mm	60 mm	49.5 mm	.140 Kg
