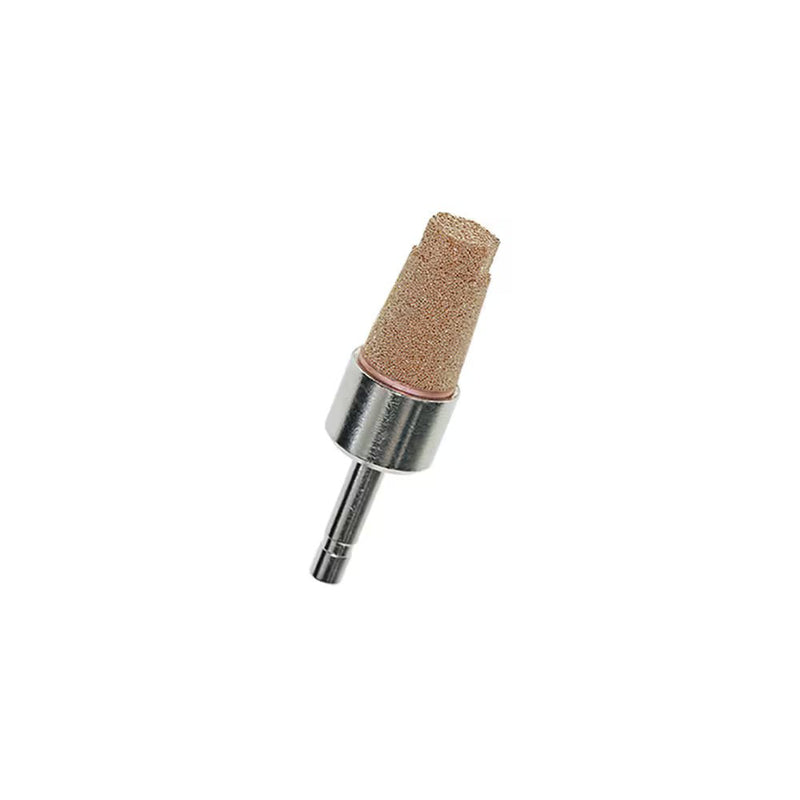

0671 08 00 by Parker | Legris Plug-In Silencer | 8 mm Tube Stem | 49.5 mm Length | Nickel-Plated Brass

0671 08 00 by Parker | Legris Plug-In Silencer | 8 mm Tube Stem | 49.5 mm Length | Nickel-Plated Brass | Pack of 10

Save $2.87 Save $2.87
$162.87
$162.87 - $162.87
$162.87
$160.00
$160.00 - $160.00
$160.00

by Parker Hannifin
Silencers:0671 Push-In Silencer

Package Quantity: 10 Units

Specifications for Variant SKU: 0671 08 00 Parker | 10 |
Series: 0671 Series
Shape (Orientation): No Orientation
Material(s): Nickel-Plated Brass, Bronze
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Polyethylene: 0 to 10 bar
    Sintered bronze: 0 to 12 bar
    316L Stainless Steel:     0 to 12 bar
  • Working Temperature: Polyethylene: -10°C to +80°C
    Sintered bronze: -20°C to +150°C
    316L Stainless Steel:     -20°C to +180°C
Advantages:
      3 materials available
      - Polyethylene: optimum exhaust flow rate and noise attention
      - Sintered bronze: robust and economic
      - 316L stainless Steel: increased chemical and mechanical resistance
  • incorporated flow control regulator on 2 versions
Regulations:
  • RoHS
  • PED
  • REACH
  • 2003/10/CE
  • OSHA
Component Materials:
  • Body: Brass (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
  • Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
Part Number C G L L1 Wt (Oz)
0671 04 00 4 mm 13 mm 41.5 mm 24.5 mm .015 oz
0671 06 00 6 mm 15 mm 48 mm 29 mm .023 oz
0671 08 00 8 mm 15 mm 49.5 mm 29.5 mm .024 oz
0671 10 00 10 mm 19.5 mm 68 mm 43.5 mm .054 oz
0671 12 00 12 mm 20 mm 68.5 mm 43 mm .055 oz
