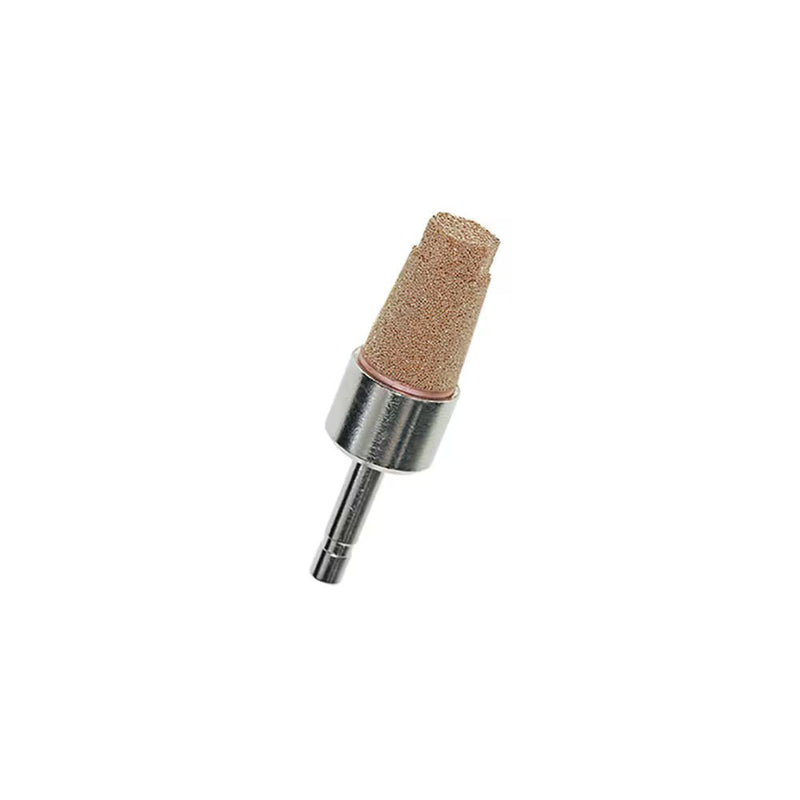

0671 12 00 by Parker | Legris Plug-In Silencer | 12 mm Tube Stem | 68.5 mm Length | Nickel-Plated Brass | Pack of 10

Save $3.99

$221.19

$221.19 - $221.19

$221.19

$217.20

$217.20 - $217.20

$217.20

by Parker Hannifin
Silencers:0671 Push-In Silencer

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 0671 12 00 Parker \| 10 \|
Series:	0671 Series
Shape (Orientation):	No Orientation
Material(s):	Nickel-Plated Brass, Bronze
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Polyethylene: 0 to 10 bar Sintered bronze: 0 to 12 bar 316L Stainless Steel: 0 to 12 bar Working Temperature: Polyethylene: -10°C to +80°C Sintered bronze: -20°C to +150°C 316L Stainless Steel: -20°C to +180°C
Advantages:	3 materials available - Polyethylene: optimum exhaust flow rate and noise attention - Sintered bronze: robust and economic - 316L stainless Steel: increased chemical and mechanical resistance incorporated flow control regulator on 2 versions
Regulations:	RoHS PED REACH 2003/10/CE OSHA
Component Materials:	Body: Brass (0670-0673-0675-0671-0677-0672) Polymer (0674-0676) Stainless Steel (0682-0683) Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672) Polymer (0674-0676) Stainless Steel (0682-0683)


Part Number	C	G	L	L1	Wt (Oz)
0671 04 00	4 mm	13 mm	41.5 mm	24.5 mm	.015 oz
0671 06 00	6 mm	15 mm	48 mm	29 mm	.023 oz
0671 08 00	8 mm	15 mm	49.5 mm	29.5 mm	.024 oz
0671 10 00	10 mm	19.5 mm	68 mm	43.5 mm	.054 oz
0671 12 00	12 mm	20 mm	68.5 mm	43 mm	.055 oz

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
