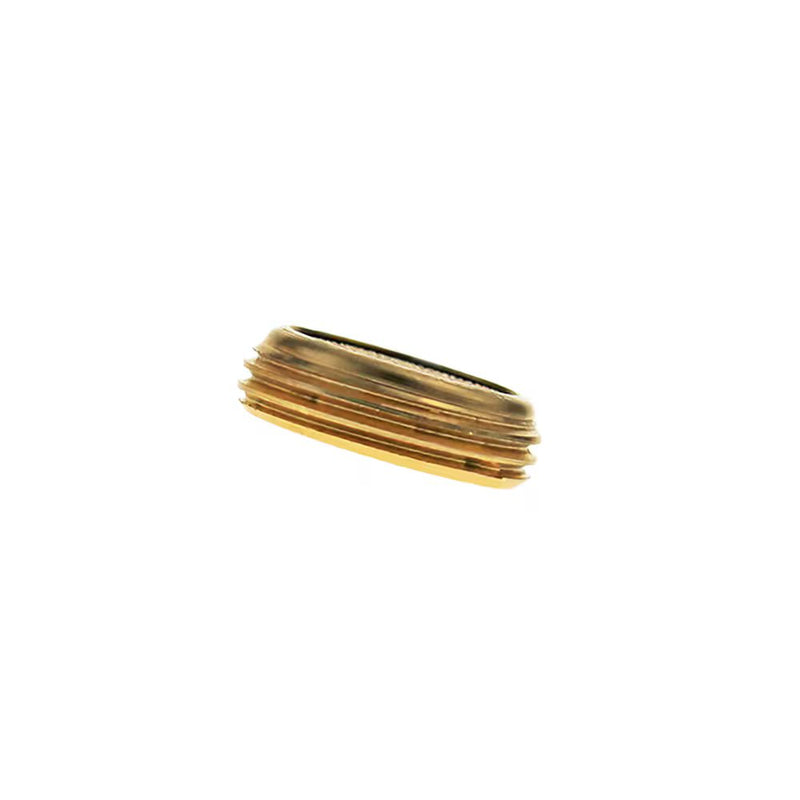

0677 00 13 by Parker | Legris Miniature Silencer | G1/4" Male BSPP Thread | Nickel-Plated Brass

0677 00 13 by Parker | Legris Miniature Silencer | G1/4" Male BSPP Thread | Nickel-Plated Brass | Pack of 10

Save $0.74 Save $0.74
$36.47
$36.47 - $36.47
$36.47
$35.73
$35.73 - $35.73
$35.73

by Parker Hannifin
Silencers:0677 Miniature Silencer, Male BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0677 00 13 Parker | 10 |
Series: 0677 Series
Shape (Orientation): No Orientation
Material(s): Nickel-Plated Brass
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Polyethylene: 0 to 10 bar
    Sintered bronze: 0 to 12 bar
    316L Stainless Steel:     0 to 12 bar
  • Working Temperature: Polyethylene: -10°C to +80°C
    Sintered bronze: -20°C to +150°C
    316L Stainless Steel:     -20°C to +180°C
Advantages:
      3 materials available
      - Polyethylene: optimum exhaust flow rate and noise attention
      - Sintered bronze: robust and economic
      - 316L stainless Steel: increased chemical and mechanical resistance
  • incorporated flow control regulator on 2 versions
Regulations:
  • RoHS
  • PED
  • REACH
  • 2003/10/CE
  • OSHA
Component Materials:
  • Body: Brass (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
  • Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672)
    Polymer (0674-0676)
    Stainless Steel (0682-0683)
Part Number C G H Wt (Oz)
0677 00 10 G1/8" 5.5 mm 4 mm .002 oz
0677 00 13 G1/4" 6 mm 4.5 mm .003 oz
0677 00 17 G3/8" 9.5 mm 4 mm .006 oz
0677 00 21 G1/2" 12.5 mm 5.5 mm .012 oz
0677 00 34 G1" 24 mm 7 mm .025 oz
