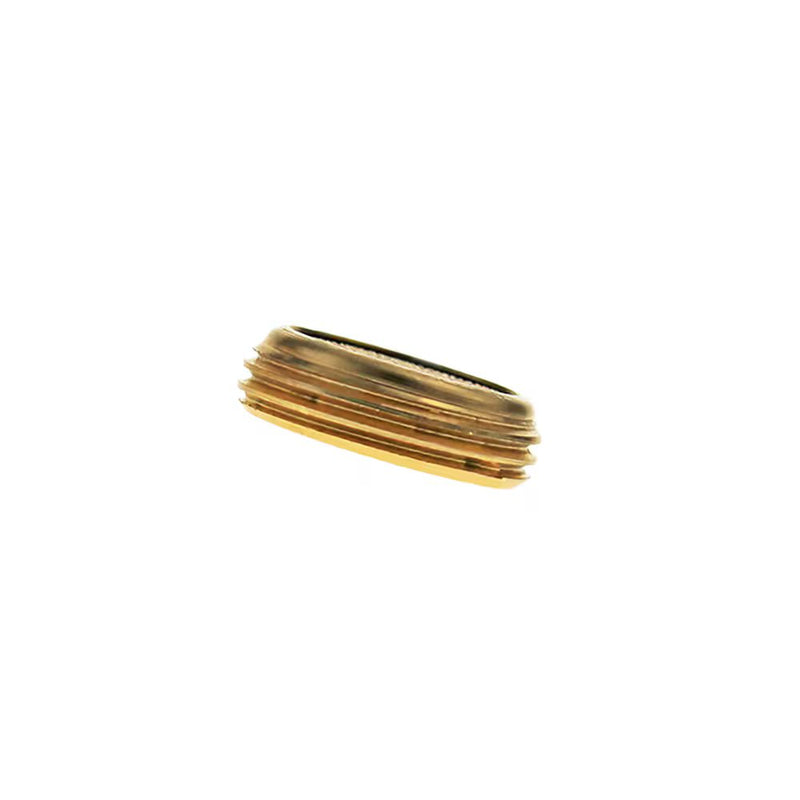

0677 00 17 by Parker | Legris Miniature Silencer | G3/8" Male BSPP Thread | Nickel-Plated Brass | Pack of 10

Save $1.21

$68.41

$68.41 - $68.41

$68.41

$67.20

$67.20 - $67.20

$67.20

by Parker Hannifin
Silencers:0677 Miniature Silencer, Male BSPP Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 0677 00 17 Parker \| 10 \|
Series:	0677 Series
Shape (Orientation):	No Orientation
Material(s):	Nickel-Plated Brass
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Polyethylene: 0 to 10 bar Sintered bronze: 0 to 12 bar 316L Stainless Steel: 0 to 12 bar Working Temperature: Polyethylene: -10°C to +80°C Sintered bronze: -20°C to +150°C 316L Stainless Steel: -20°C to +180°C
Advantages:	3 materials available - Polyethylene: optimum exhaust flow rate and noise attention - Sintered bronze: robust and economic - 316L stainless Steel: increased chemical and mechanical resistance incorporated flow control regulator on 2 versions
Regulations:	RoHS PED REACH 2003/10/CE OSHA
Component Materials:	Body: Brass (0670-0673-0675-0671-0677-0672) Polymer (0674-0676) Stainless Steel (0682-0683) Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672) Polymer (0674-0676) Stainless Steel (0682-0683)


Part Number	C	G	H	Wt (Oz)
0677 00 10	G1/8"	5.5 mm	4 mm	.002 oz
0677 00 13	G1/4"	6 mm	4.5 mm	.003 oz
0677 00 17	G3/8"	9.5 mm	4 mm	.006 oz
0677 00 21	G1/2"	12.5 mm	5.5 mm	.012 oz
0677 00 34	G1"	24 mm	7 mm	.025 oz

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.

Shop Parts by Parker Fluid System Connectors Division
