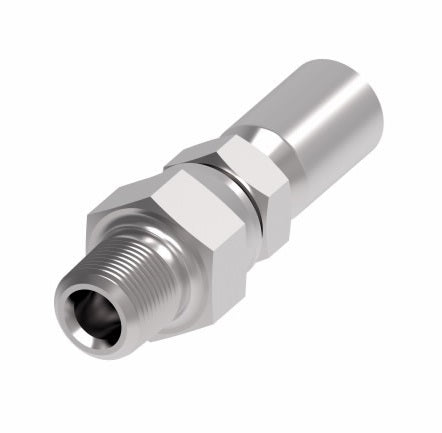

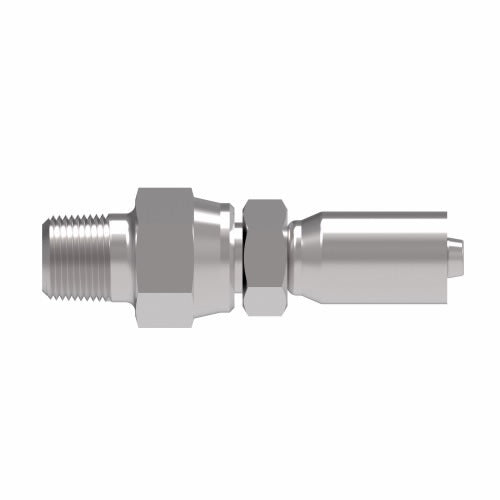

06E-J06 Weatherhead by Danfoss | Everflex E Series | Male Pipe Swivel Crimp Fitting | -06 Male NPTF Swivel x -06 Hose Barb | Steel
06E-J06 Weatherhead by Danfoss | Everflex E Series | Male Pipe Swivel Crimp Fitting | -06 Male NPTF Swivel x -06 Hose Barb | Steel
06E-J06 Weatherhead by Danfoss | Everflex E Series | Male Pipe Swivel Crimp Fitting | -06 Male NPTF Swivel x -06 Hose Barb | Steel
06E-J06 Weatherhead by Danfoss | Everflex E Series | Male Pipe Swivel Crimp Fitting | -06 Male NPTF Swivel x -06 Hose Barb | Steel

06E-J06 Weatherhead by Danfoss | Everflex E Series | Male Pipe Swivel Crimp Fitting | -06 Male NPTF Swivel x -06 Hose Barb | Steel

$14.61 - $14.61
$14.61
$14.61 - $14.61
$14.61

Weatherhead by Danfoss
Everflex 'E' Series Crimp Fitting - Male Pipe Swivel - Straight
Specifications for Variant SKU: 06E-J06 Danfoss
Brand: Weatherhead
Series: Everflex E Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Male NPTF, 3/8in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H009 Series  |   H243 Series  |   H275 Series  |   H277 Series  |   H285 Series
Applications:
  • General purpose low and medium pressure hydraulics.
  • Use H277 where shock hazards exist.
Pressure:
  • Determined by maximum operating pressure for hose size and hose end configuration whichever is lesser.
Material:
  • Low carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H009, H243, H275, H277, H285
Warning:
  • For PTFE hose applications, 'E' series fittings must be used with H243 and H277 0.030" thin wall hose only
Steel
Part Number		 Hose I.D. Pipe Size Thread Size A Hose Cut-Off
Factor		 Hole Dia. Hex E Hex F
04E-J04 1/4" 1/4" 1/4-18 2.68" 1.81" 0.16" 5/8" 13/16"
04E-J06 3/8" 3/8" 3/8-18 2.79" 1.81" 0.27" 11/16" 7/8"
08E-J08 1/2" 1/2" 1/2-14 3.03" 2.00" 0.39" 3/4" 7/8"
12E-J12 3/4" 3/4" 3/4-14 3.73" 2.50" 0.61" 1-1/4" 1-1/4"

Note: Drawings may differ from actual parts.
