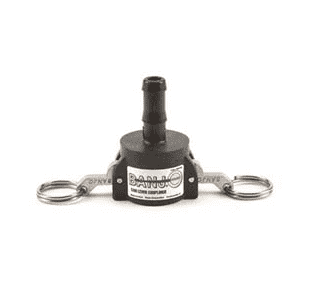

075C Banjo Polypropylene Cam Lever Coupling - Part C - 3/4" Female Coupler x 3/4" Hose Shank - 125 PSI - Gasket: EPDM (Pack of 10)

075C by Banjo | Cam Lever Coupling | Part C | 3/4" Female Coupler x 3/4" Hose Shank | 300 PSI | Gasket: EPDM | Polypropylene | Pack of 10

Save $6.36

$83.56

$83.56 - $83.56

$83.56

$77.20

$77.20 - $77.20

$77.20

Banjo Cam Lever Couplings - Polypropylene Cam Lever Couplings - 3/4" Series

Package Quantity: 10 EA

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 075C Banjo \| 10 \|
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	3/4in Female Cam & Groove, 3/4in Hose Barb
Material(s):	Polypropylene
Seal Material(s):	EPDM

Applications:
Agriculture Industrial Fluids
Features:
Stainless steel rings, arms & pins Most complete line of polypropylene couplings available Versatile - interchangeable with all types of cam lever couplers Precision molded - insures a uniform and accurate fit Durable - Polypropylene is glass reinforced for rugged strength and durability Smooth operating - finger rings are designed for easy opening of cam levers Complete series of 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3" and 4" NPT thread BSP threads available 1" - 3" sizes (excluding 1-1/4") Economical and superior in performance Standard with EPDM gaskets. Buna "N", and FKM (viton type) also available Note: 303B & 303C & All 4" Couplings have 3 Arms for POSITIVE SEAL! WARNING: Couplings should not be disconnected under pressure or with liquid in the line.

Part Number	Type	End Type	Max PSI	Gasket
75B3/4	Part B	3/4" Female Coupler x 3/4" Male NPT	300 PSI	EPDM
075C	Part C	3/4" Female Coupler x 3/4" Hose Shank	300 PSI	EPDM
075D	Part D	3/4" Female Coupler x 3/4" Female NPT	300 PSI	EPDM
075E	Part E	3/4" Male Adapter x 3/4" Hose Shank	300 PSI	None
075F	Part F	3/4" Male Adapter x 3/4" Male NPT	300 PSI	None
075CAP	Part PL	3/4" Cap - Male Adapter	300 PSI	EPDM
75PL	Part CAP	3/4" Plug - Female Coupler	300 PSI	None

Note: 1/4", 3/8" and 1/2" series couplings interchange with 3/4" size couplings. Coupling ends are 3/4" size 1-1/4" series couplings interchange with 1" size couplings. Coupling ends are 1" size. 1-1/2" x 1-1/4" couplings interchange with 1-1/2" size couplings. Coupling ends are 1-1/2" size

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
