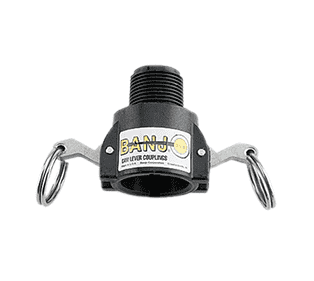

75B3/4 Banjo Polypropylene Cam Lever Coupling - Part B - 3/4" Female Coupler x 3/4" Male NPT - 125 PSI - Gasket: EPDM (Pack of 10)

75B3/4 by Banjo | Cam Lever Coupling | Part B | 3/4" Female Coupler x 3/4" Male NPT | 300 PSI | Gasket: EPDM | Polypropylene | Pack of 10

Save $10.02

$90.15

$90.15 - $90.15

$90.15

$80.13

$80.13 - $80.13

$80.13

Banjo Cam Lever Couplings - Polypropylene Cam Lever Couplings - 3/4" Series

Package Quantity: 10 EA

Quantity

Specifications for Variant SKU: 75B3/4 Banjo \| 10 \|
Shape (Orientation):	Straight
Cam Type:	Type B
Ends Configuration:	3/4in Female Cam & Groove, 3/4in Male NPT
Material(s):	Polypropylene
Seal Material(s):	EPDM

Applications:
Agriculture Industrial Fluids
Features:
Stainless steel rings, arms & pins Most complete line of polypropylene couplings available Versatile - interchangeable with all types of cam lever couplers Precision molded - insures a uniform and accurate fit Durable - Polypropylene is glass reinforced for rugged strength and durability Smooth operating - finger rings are designed for easy opening of cam levers Complete series of 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3" and 4" NPT thread BSP threads available 1" - 3" sizes (excluding 1-1/4") Operating conditions: 3/8" thru 2" - 100 PSI at 0 deg. F; 125 PSI at 70 deg. F; 70 PSI at 150 deg. F. 2-1/2", 3" & 4" Cap - 50 PSI; Couplings 75 PSI max Economical and superior in performance Standard with EPDM gaskets. Buna "N", and FKM (viton type) also available Note: 303B & 303C & All 4" Couplings have 3 Arms for POSITIVE SEAL! WARNING: Couplings should not be disconnected under pressure or with liquid in the line.

Part Number	Type	End Type	Max PSI	Gasket
75A3/4	Part A	3/4" Male Adapter x 3/4" Female NPT	225 PSI	N/A
75B3/4	Part B	3/4" Female Coupler x 3/4" Male NPT	225 PSI	EPDM
075C	Part C	3/4" Female Coupler x 3/4" Hose Shank	300 PSI	EPDM
075D	Part D	3/4" Female Coupler x 3/4" Female NPT	300 PSI	EPDM
075E	Part E	3/4" Male Adapter x 3/4" Hose Shank	300 PSI	N/A
075F	Part F	3/4" Male Adapter x 3/4" Male NPT	300 PSI	N/A
075CAP	Part PL	3/4" Cap - Male Adapter	300 PSI	EPDM
75PL	Part CAP	3/4" Plug - Female Coupler	300 PSI	N/A

Note: 1/4", 3/8" and 1/2" series couplings interchange with 3/4" size couplings. Coupling ends are 3/4" size 1-1/4" series couplings interchange with 1" size couplings. Coupling ends are 1" size. 1-1/2" x 1-1/4" couplings interchange with 1-1/2" size couplings. Coupling ends are 1-1/2" sizee

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
