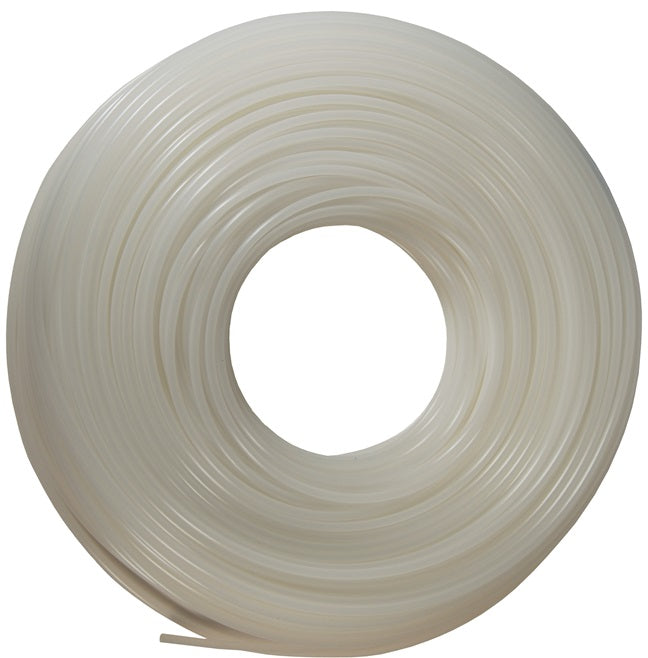

0804 by Dixon Valve | Polyethylene Tubing | 1/4" OD | 0.125" ID | 0.062" Wall Thickness | Natural | 100ft Length

0804 by Dixon Valve | Polyethylene Tubing | 1/4" OD | 0.125" ID | 0.062" Wall Thickness | Natural | 100ft Length

Save $11.55 Save $11.55
$28.87
$28.87 - $28.87
$28.87
$17.32
$17.32 - $17.32
$17.32

Dixon Valve
Polyethylene Tubing

For use with the push-in fittings.


Package Quantity: 100 Feet

Specifications for Variant SKU: 0804 Dixon
Series: Plastic Fittings and Tubing
Hose Color(s): White/Off-White
Internal Diameter: 0.125in
Outer Diameter: 0.25in
Tubing Construction: Polyethylene
Applicable Specs & Approvals: FDA 21 CFR Part 177.1520, NSF 61
Features:
  • Flexible, lightweight, low-density polyethylene (LLDPE) tubing.
  • For use with plastic or metal inserts with outer sleeve, ferrule, or clamps.
  • Formulated to resist stress cracking.
  • Glossy finish.
Specifications:
  • Temperature range: -50°F to 140°F (-46° to 60°C).
Approvals:
  • NSF61 certified for potable water
  • UV stabilized
  • Designed for FDA applications, complies with 21CFR 177.1520 (c) food contact
Polyethylene
Part Number		 Size Wall Thickness Working Pressure
PSI @ 75°F (24°C)		 Length Tubing Color
O.D. I.D.
0804 1/4" 0.125" 0.062" 350 100ft Natural
0817 1/4" 0.170" 0.040" 150 100ft Natural
0817BL100 1/4" 0.170" 0.040" 150 100ft Blue
1208 3/8" 0.250" 0.062" 150 100ft Natural
1612 1/2" 0.375" 0.062" 125 100ft Natural

0817BL 1/4" 0.170" 0.040" 150 500ft Blue
0817BR 1/4" 0.170" 0.040" 150 500ft Black
0817CR 1/4" 0.170" 0.040" 150 500ft Natural
1208BR 3/8" 0.250" 0.062" 150 500ft Black
1208CR 3/8" 0.250" 0.062" 150 500ft Natural
