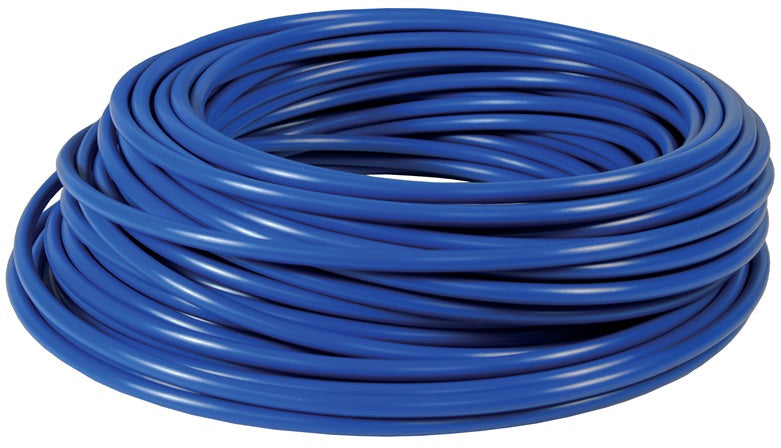

0817BL by Dixon Valve | Polyethylene Tubing | 1/4" OD | 0.170" ID | 0.040" Wall Thickness | Blue | 500ft Length

Save $7.95

$77.86

$77.86 - $77.86

$77.86

$69.91

$69.91 - $69.91

$69.91

Dixon Valve
Polyethylene Tubing

For use with the push-in fittings.

Quantity

Specifications for Variant SKU: 0817BL Dixon
Series:	Plastic Fittings and Tubing
Hose Color(s):	Blue
Internal Diameter:	0.17in
Outer Diameter:	0.25in
Tubing Construction:	Polyethylene
Applicable Specs & Approvals:	FDA 21 CFR Part 177.1520, NSF 61

Features:
Flexible, lightweight, low-density polyethylene (LLDPE) tubing. For use with plastic or metal inserts with outer sleeve, ferrule, or clamps. Formulated to resist stress cracking. Glossy finish.
Specifications:
Temperature range: -50°F to 140°F (-46° to 60°C).
Approvals:
NSF61 certified for potable water UV stabilized Designed for FDA applications, complies with 21CFR 177.1520 (c) food contact

Polyethylene Part Number	Size		Wall Thickness	Working Pressure PSI @ 75°F (24°C)	Length	Tubing Color
Polyethylene Part Number	O.D.	I.D.	Wall Thickness	Working Pressure PSI @ 75°F (24°C)	Length	Tubing Color
0804	1/4"	0.125"	0.062"	350	100ft	Natural
0817	1/4"	0.170"	0.040"	150	100ft	Natural
0817BL100	1/4"	0.170"	0.040"	150	100ft	Blue
1208	3/8"	0.250"	0.062"	150	100ft	Natural
1612	1/2"	0.375"	0.062"	125	100ft	Natural

0817BL	1/4"	0.170"	0.040"	150	500ft	Blue
0817BR	1/4"	0.170"	0.040"	150	500ft	Black
0817CR	1/4"	0.170"	0.040"	150	500ft	Natural
1208BR	3/8"	0.250"	0.062"	150	500ft	Black
1208CR	3/8"	0.250"	0.062"	150	500ft	Natural

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
