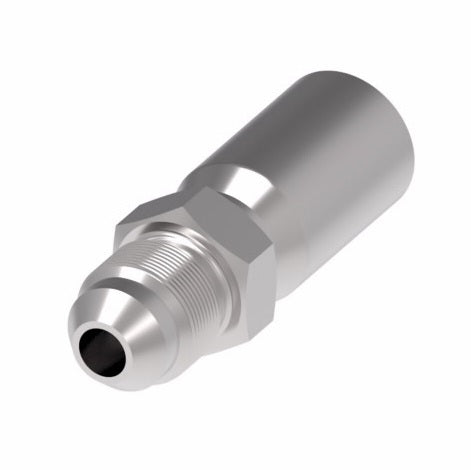

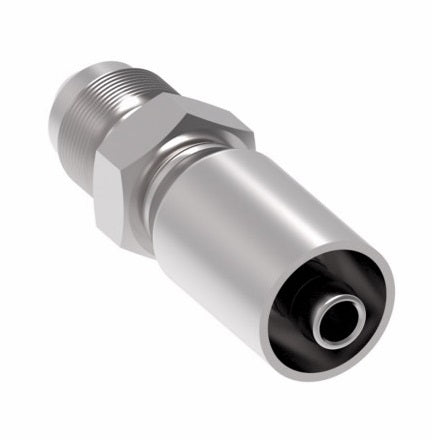

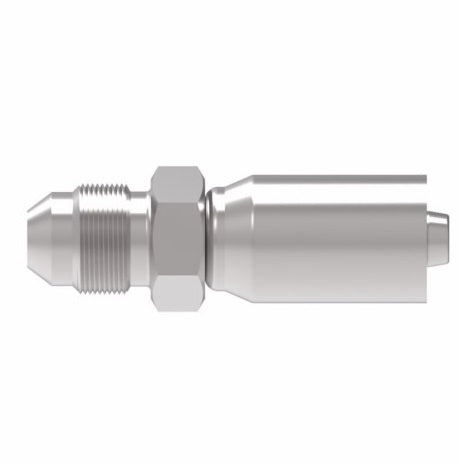

08E-510 Weatherhead by Danfoss | Everflex E Series | Male 37° JIC Rigid Crimp Fitting | -10 Male 37° JIC x -08 Hose Barb | Steel
08E-510 Weatherhead by Danfoss | Everflex E Series | Male 37° JIC Rigid Crimp Fitting | -10 Male 37° JIC x -08 Hose Barb | Steel
08E-510 Weatherhead by Danfoss | Everflex E Series | Male 37° JIC Rigid Crimp Fitting | -10 Male 37° JIC x -08 Hose Barb | Steel
08E-510 Weatherhead by Danfoss | Everflex E Series | Male 37° JIC Rigid Crimp Fitting | -10 Male 37° JIC x -08 Hose Barb | Steel

08E-510 Weatherhead by Danfoss | Everflex E Series | Male 37° JIC Rigid Crimp Fitting | -10 Male 37° JIC x -08 Hose Barb | Steel

$27.09 - $27.09
$27.09
$27.09 - $27.09
$27.09

Weatherhead by Danfoss
Everflex 'E' Series Crimp Fitting - Male 37° JIC Rigid - Straight
Specifications for Variant SKU: 08E-510 Danfoss
Brand: Weatherhead
Series: Everflex E Series
Shape (Orientation): Straight
Ends Configuration: 5/8in Male JIC, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: H009 Series  |   H243 Series  |   H275 Series  |   H277 Series  |   H285 Series
Applications:
  • General purpose low and medium pressure hydraulics.
  • Use H277 where shock hazards exist.
Pressure:
  • Determined by maximum operating pressure for hose size and hose end configuration whichever is lesser.
Material:
  • Low carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H009, H243, H275, H277, H285
Warning:
  • For PTFE hose applications, 'E' series fittings must be used with H243 and H277 0.030" thin wall hose only
Steel
Part Number		 Hose I.D. Tube Size Thread Size A Hose Cut-Off
Factor		 Hole Dia. Hex E
04E-504 1/4" 1/4" 7/16-20 1.78" 0.94" 0.16" 1/2"
04E-506 1/4" 3/8" 9/16-18 1.82" 1.00" 0.22" 5/8"
05E-505 5/16" 5/16" 1/2-20 1.86" 0.94" 0.22" 9/16"
06E-506 3/8" 3/8" 9/16-18 1.92" 1.00" 0.27" 5/8"
06E-508 3/8" 1/2" 3/4-16 2.08" 1.19" 0.27" 13/16"
08E-508 1/2" 1/2" 3/4-16 2.18" 1.19" 0.27" 13/16"
08E-510 1/2" 5/8" 7/8-14 2.31" 1.25" 0.42" 15/16"
16E-516 1" 1" 1-5/16-12 2.83" 1.50" 0.84" 1-3/8"

Note: Drawings may differ from actual parts.
