08E-S68 Weatherhead by Danfoss | Everflex E Series | Female ORS Swivel Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
08E-S68 Weatherhead by Danfoss | Everflex E Series | Female ORS Swivel Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
08E-S68 Weatherhead by Danfoss | Everflex E Series | Female ORS Swivel Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
08E-S68 Weatherhead by Danfoss | Everflex E Series | Female ORS Swivel Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel

08E-S68 Weatherhead by Danfoss | Everflex E Series | Female ORS Swivel Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel

$18.38 - $18.38
$18.38
$18.38 - $18.38
$18.38

Weatherhead by Danfoss

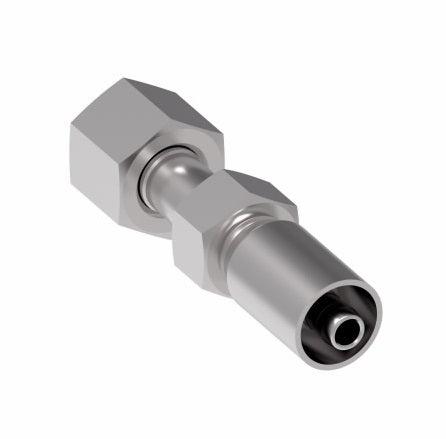

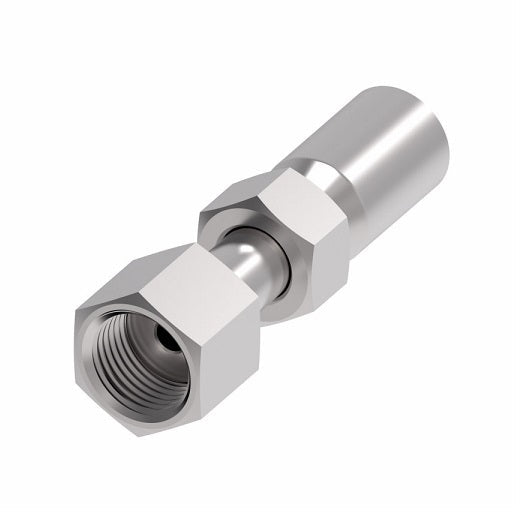

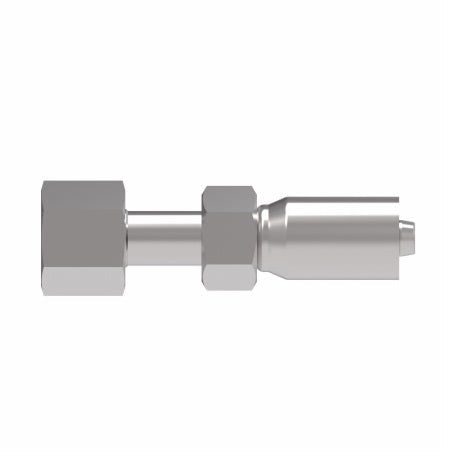

Everflex 'E' Series Crimp Fitting - Female O-Ring Face Seal Swivel - Straight
Specifications for Variant SKU: 08E-S68 Danfoss
Brand: Weatherhead
Series: Everflex E Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Female O-Ring Face Seal, 1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H009 Series  |   H243 Series  |   H275 Series  |   H277 Series  |   H285 Series
Applications:
  • General purpose low and medium pressure hydraulics.
  • Use H277 where shock hazards exist.
Pressure:
  • Determined by maximum operating pressure for hose size and hose end configuration whichever is lesser.
Material:
  • Low carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H009, H243, H275, H277, H285
Warning:
  • For PTFE hose applications, 'E' series fittings must be used with H243 and H277 0.030" thin wall hose only
Steel
Part Number		 Hose I.D. Tube Size Thread Size A Hose Cut-Off
Factor		 Hole Dia. Hex E Hex F
05E-S66 5/16" 3/8" 11/16-16 2.28" 1.38" 0.22" 9/16" 13/16"
06E-S66 3/8" 3/8" 11/16-16 2.37" 1.44" 0.24" 9/16" 13/16"
08E-S68 1/2" 1/2" 13/16-16 2.74" 1.69" 0.33" 3/4" 15/16"

Note: Drawings may differ from actual parts.
