0929 01 17 by Parker | Legris 3 Piece w/ Seal | 3/8" Male BSPT Thread | 22 mm Hex | 36.5 mm Length | Straight | Brass | Pack of 10

Save $79.83

$199.58

$199.58 - $199.58

$199.58

$119.75

$119.75 - $119.75

$119.75

by Parker Hannifin
Brass Adapters:0929..1 Equal 3-Piece Adaptor, Male BSPT Thread with sea

Package Quantity: 10 Units

Specifications for Variant SKU: 0929 01 17 Parker \| 10 \|
Series:	0929 Series
Shape (Orientation):	Straight
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber


Adapters and Manifolds:


Part Number	C	F	F1	L	L1	L2	Kg
0929 01 17	3/8"	22 mm	8 mm	36.5 mm	11.5 mm	10 mm	.055 Kg
0929 01 21	1/2"	27 mm	12 mm	45 mm	14 mm	12 mm	.088 Kg

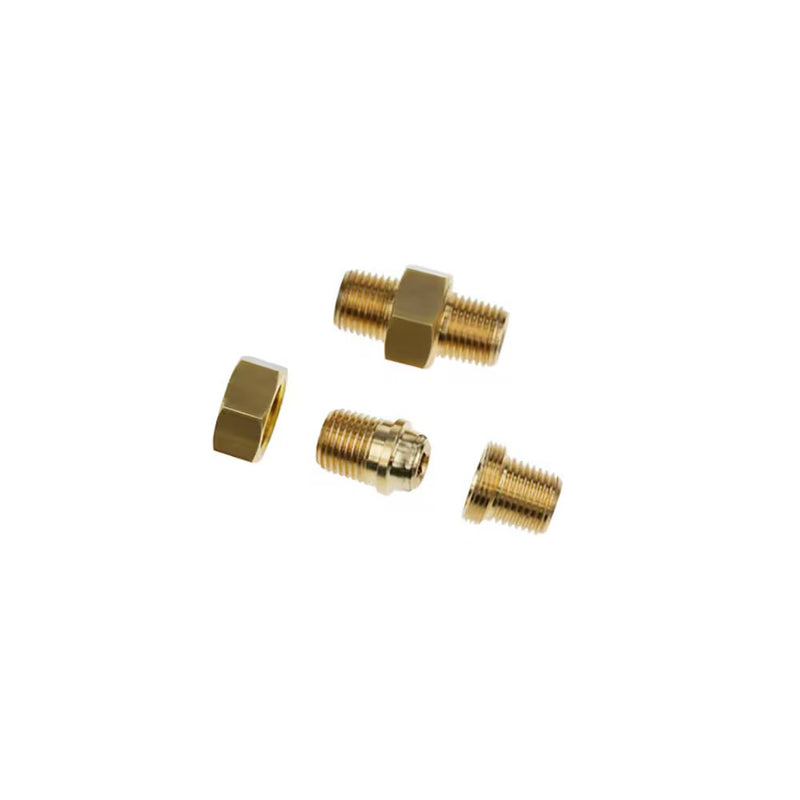

This connection accessory makes assembly much easier thanks to its 3-piece design.
To join 2 threaded components, simply push together and tighten the sleeve nut, thus reducing installation time.
Maximum working pressure: 50 bar.
Working temperature: -10° to +80°C. Supplied with seal
