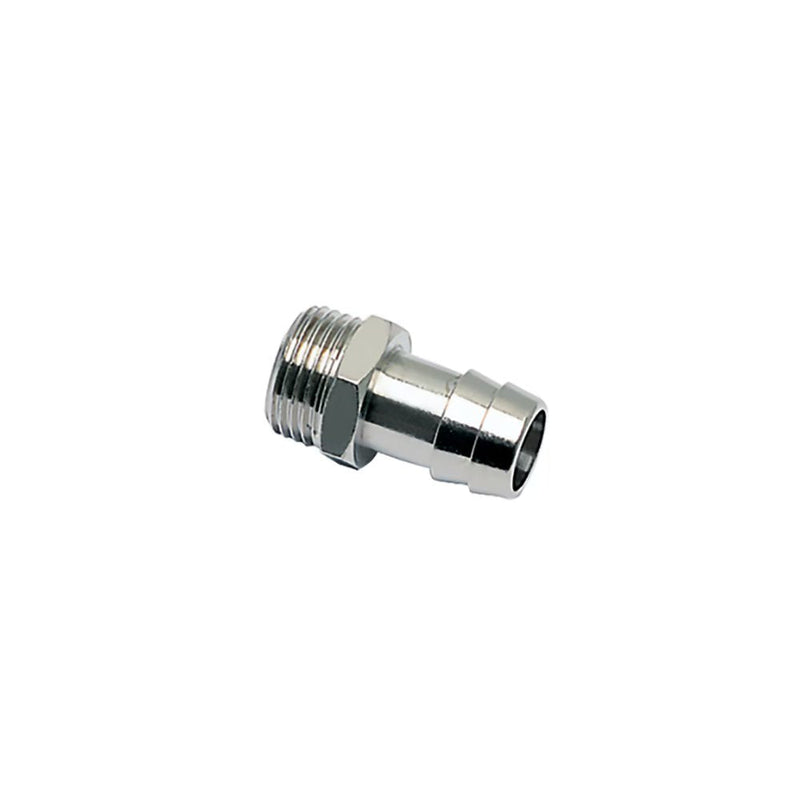

0931 15 21 by Parker | Legris Tailpiece Adapter for Rubber Hose | 17 mm Barb x 1/2" Male BSPP Thread | 22 mm Hex | 40 mm Length | Straight | Nickel-Plated Brass | Pack of 50

Save $491.09

$1,227.72

$1,227.72 - $1,227.72

$1,227.72

$736.63

$736.63 - $736.63

$736.63

by Parker Hannifin
Nickel-Plated Brass Adapters:0931 Tailpiece Adaptor for Rubber Hose, Male BSPP Thread

Package Quantity: 50 Units

Specifications for Variant SKU: 0931 15 21 Parker \| 50 \|
Series:	0931 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass


Adapters and Manifolds:


Part Number	ØD	ØD1	C	E	F	K	L	Kg
0931 06 10	6 mm	7,3 mm	1/8"	6 mm	12 mm	4.5 mm	19 mm	.009 Kg
0931 06 13	6 mm	7,3 mm	1/4"	8 mm	14 mm	5 mm	19 mm	.013 Kg
0931 07 10	7 mm	8,3 mm	1/8"	6 mm	12 mm	4 mm	19 mm	.009 Kg
0931 07 13	7 mm	8,3 mm	1/4"	8 mm	14 mm	5 mm	19 mm	.014 Kg
0931 07 17	7 mm	8,3 mm	3/8"	9 mm	19 mm	5 mm	19 mm	.021 Kg
0931 08 10	8/9 mm	9,3 mm	1/8"	6 mm	12 mm	4 mm	19 mm	.009 Kg
0931 08 13	8/9 mm	9,3 mm	1/4"	8 mm	14 mm	5 mm	19 mm	.014 Kg
0931 08 17	8/9 mm	9,3 mm	3/8"	9 mm	19 mm	5 mm	19 mm	.022 Kg
0931 10 13	10 mm	12,5 mm	1/4"	8 mm	14 mm	5 mm	19 mm	.016 Kg
0931 10 17	10 mm	12,5 mm	3/8"	9 mm	19 mm	5 mm	19 mm	.024 Kg
0931 10 21	10 mm	12,5 mm	1/2"	10 mm	22 mm	6 mm	20 mm	.031 Kg
0931 15 17	15/16 mm	17,5 mm	3/8"	9 mm	19 mm	6 mm	24 mm	.030 Kg
0931 15 21	15/16 mm	17,5 mm	1/2"	10 mm	22 mm	6 mm	24 mm	.036 Kg
0931 18 21	18 mm	20,6 mm	1/2"	10 mm	22 mm	6 mm	24 mm	.040 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
