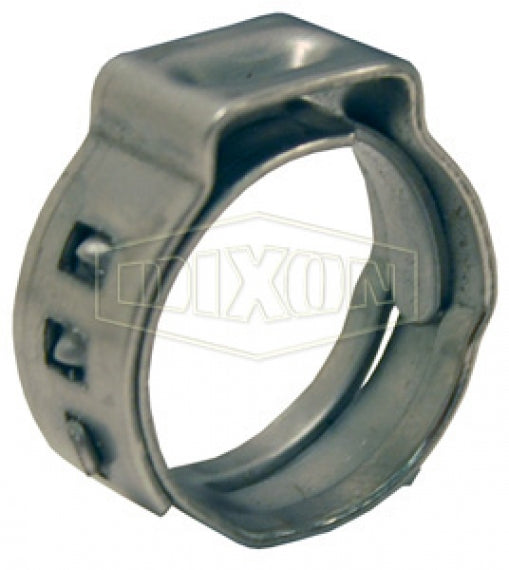

0986 by Dixon Valve | Pinch-On Clamp | Stepless® Ear Clamp | 3/8" Nominal Size | Clamp Range: 0.307" Closed to 0.374" Open | 304 Stainless Steel

0986 by Dixon Valve | Pinch-On Clamp | Stepless® Ear Clamp | 3/8" Nominal Size | Clamp Range: 0.307" Closed to 0.374" Open | 304 Stainless Steel | Box of 100

Save $9.83 Save $9.83
$88.50
$88.50 - $88.50
$88.50
$78.67
$78.67 - $78.67
$78.67

Dixon Valve
Pinch-On Stepless® Ear Clamps
Specifications for Variant SKU: 0986 Dixon | 100 |
Series: Stepless®
Material(s): 304 Stainless Steel
Minimum Clamp I.D.: 0.307
Maximum Clamp I.D.: 0.374
Features:
  • Once installed and clamped, tampering is easily visible.
  • Ensured clamping seal.
  • For low durometer or thin-walled hose/tubing.
  • For silicon, vinyl, polyurethane, or other high-tech materials.
  • Smooth inner band prevents damage to the hose while the tongue-in-groove design provides a 360° seal.
  • No steps or gaps inside the clamp.
  • Clamps hold against pressure, vibration, and material shrinkage due to temperature changes or aging.
  • Built-in spring action permits the clamp to breathe without loosening.
Note:
  • Clamps are not reusable; they should not be pried open, doing so renders theclamp nonfunctional.
  • When ordering, select the nominal size nearest to, but always larger than, the outside diameter of the material to be clamped, the outside diameter should be determined with connection fully assembled.
Installation Tools:
  • Standard Jaw Clamp Tool 1098
  • Side Jaw Clamp Tool 1099
304 Stainless Steel
Part Number		 Nominal Size Range
Closed Open
0983 9/32" 0.228" 0.275"
0986 3/8" 0.307" 0.374"
0989 7/16" 0.378" 0.445"
0993 1/2" 0.425" 0.524"
0997 35/64" 0.453" 0.551"
0999 9/16" 0.472" 0.571"
1005 5/8" 0.520" 0.618"
1009 11/16" 0.571" 0.669"
1021 3/4" 0.654" 0.779"
1029 13/16" 0.701" 0.827"
