1/2" R17 Couplamatic Import 3000 PSI One Wire Hydraulic Hose (SAE 100R17) (Reduced OD) - 1/2" ID - 350ft

1/2" R17 by Couplamatic | Import 3000 PSI | One Wire Hydraulic Hose | SAE 100R17 | Reduced OD | 1/2" ID | 350ft

Save $536.35

$1,340.88

$1,340.88 - $1,340.88

$1,340.88

$804.53

$804.53 - $804.53

$804.53

Couplamatic Systems Inc.
One or Two Wire Braids Hoses - R17 Import 3000 PSI Constant Working Pressure Hydraulic Hose - (SAE 100R17) (Reduced OD)

Package Quantity: 350 FT

Specifications for Variant SKU: 1/2" R17 Couplamatic \| 350 \|
Series:	R17 Series
Hose Color(s):	Black
Dash Size:	-8
Internal Diameter:	0.50in
Outer Diameter:	0.776in
Applicable Specs & Approvals:	Applicable MSHA Standards, SAE 100R17
Compatible with the following Series:	Vari-Crimp Series \| A Series \| Grip Crimp Series \| GW Series

SAE 100R17 — Reduced OD, ISO 18752

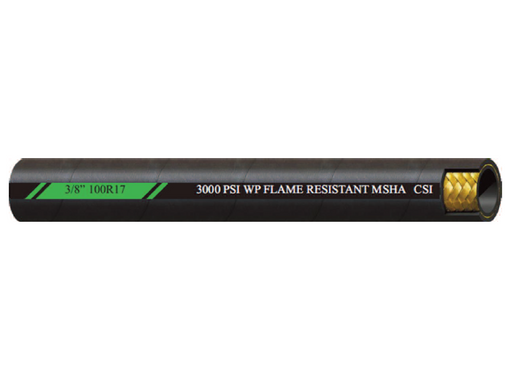

R17 Import 3000 PSI Constant Working Pressure Hydraulic Hose

Reduced outside diameter SAE 100R17 hose meeting ISO 18752, holding 3,000 PSI constant working pressure from 1/4" through 1".

1

What is this hose used for?

High Pressure Hydraulics
Industrial
Agricultural

2

What are the key specifications?

SAE Rating

SAE 100R17

Cover

Abrasion and Flame Resistant Cover, MSHA Approved

Reinforcement

One (1/4"-1/2") or Two (5/8"-1") Wire Braids

Temperature

-40°F to +212°F (-40°C to +100°C)

3

What are the main product features?

3000 PSI constant working pressure — consistent rating across the full size range.
Reduced outside diameter — more hose fits through the same routing and clamps.
ISO 18752 compliant — meets the international performance standard.
One or two wire braids — one wire in 1/4"–1/2", two wire in 5/8"–1".
MSHA approved cover — abrasion and flame resistant.

4

Which sizes are available?

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Reel Footage
1/4" R17	1/4"	0.492"	3,000 lbs.	12,000 lbs.	2"	13 lbs.	500ft
3/8" R17	3/8"	0.649"	3,000 lbs.	12,000 lbs.	3"	19 lbs.	500ft
1/2" R17	1/2"	0.776"	3,000 lbs.	12,000 lbs.	4"	31 lbs.	350ft
5/8" R17	5/8"	0.937"	3,000 lbs.	12,000 lbs.	4"	41 lbs.	250ft
3/4" R17	3/4"	1.090"	3,000 lbs.	12,000 lbs.	5"	53 lbs.	250ft
1" R17	1"	1.405"	3,000 lbs.	12,000 lbs.	6"	82 lbs.	200ft

i

Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
