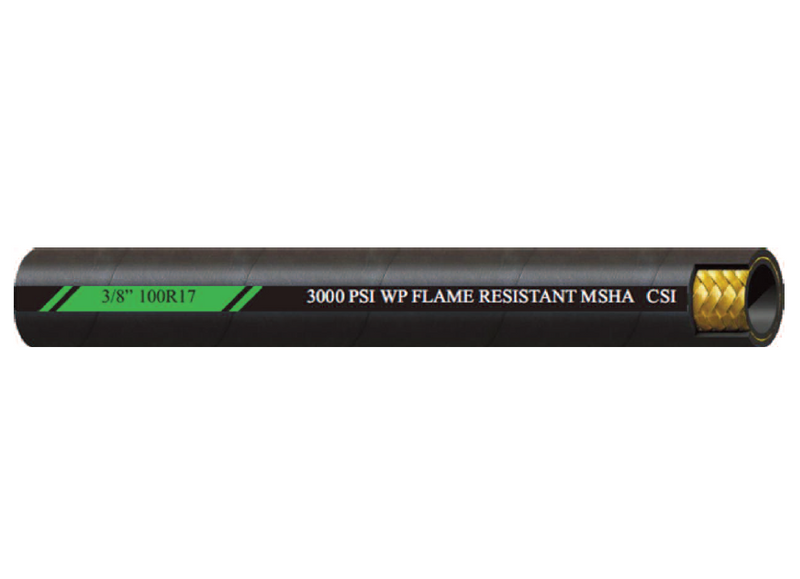

3/8" R17 Couplamatic Import 3000 PSI One Wire Hydraulic Hose (SAE 100R17) (Reduced OD) - 3/8" ID - 500ft

3/8" R17 by Couplamatic | Import 3000 PSI | One Wire Hydraulic Hose | SAE 100R17 | Reduced OD | 3/8" ID | 500ft

Save $102.00

$918.00

$918.00 - $918.00

$918.00

$816.00

$816.00 - $816.00

$816.00

Couplamatic Systems Inc.
One or Two Wire Braids Hoses - R17 Import 3000 PSI Constant Working Pressure Hydraulic Hose - (SAE 100R17) (Reduced OD)

Package Quantity: 500 FT

Quantity

Specifications for Variant SKU: 3/8" R17 Couplamatic \| 500 \|
Series:	R17 Series
Hose Color(s):	Black
Dash Size:	-6
Internal Diameter:	0.375in
Outer Diameter:	0.649in
Applicable Specs & Approvals:	Applicable MSHA Standards, SAE 100R17
Compatible with the following Series:	Vari-Crimp Series \| A Series \| Grip Crimp Series \| GW Series

Applications:	High Pressure Hydraulics, Industrial or Agricultural	SAE Rating:	SAE 100R17
Cover:	Abrasion and Flame Resistant Cover, MSHA Approved	Reinforcement:	One (1/4"-1/2") or Two (5/8"-1") Wire Braids
Temperature:	-40F to +212F (-40C to +100C)

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Reel Footage
1/4" R17	1/4"	0.492"	3,000 lbs.	12,000 lbs.	2"	13 lbs.	500ft
3/8" R17	3/8"	0.649"	3,000 lbs.	12,000 lbs.	3"	19 lbs.	500ft
1/2" R17	1/2"	0.776"	3,000 lbs.	12,000 lbs.	4"	31 lbs.	350ft
5/8" R17	5/8"	0.937"	3,000 lbs.	12,000 lbs.	4"	41 lbs.	250ft
3/4" R17	3/4"	1.090"	3,000 lbs.	12,000 lbs.	5"	53 lbs.	250ft
1" R17	1"	1.405"	3,000 lbs.	12,000 lbs.	6"	82 lbs.	200ft

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
