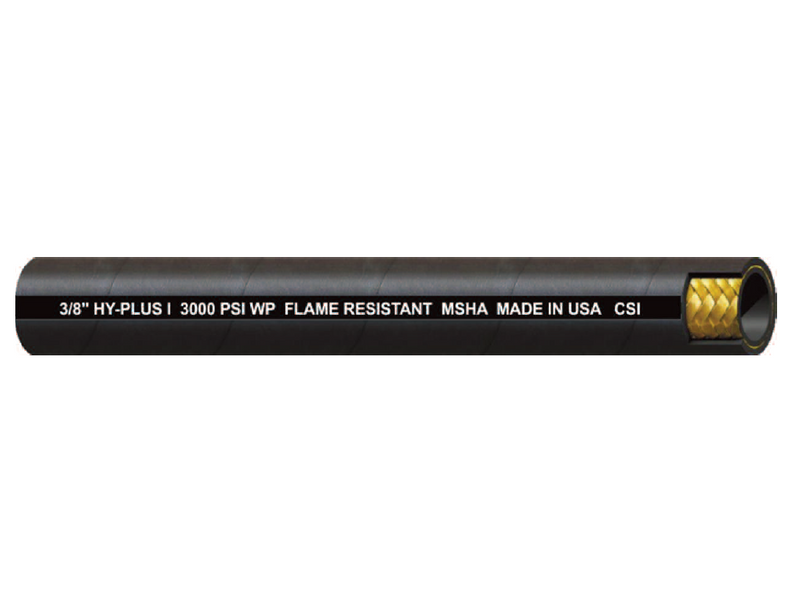

1/4" HPI Couplamatic Domestic HY-PLUS I One Wire Dimension Hi-Pressure Extremely Flexible Hydraulic Hose (SAE 100R17) - 1/4" ID - 250ft

1/4" HPI by Couplamatic | Domestic HY-PLUS I One Wire Dimension Hi-Pressure Extremely Flexible Hydraulic Hose | SAE 100R17 | 1/4" ID | 250ft

Save $420.45 Save $420.45
$1,051.12
$1,051.12 - $1,051.12
$1,051.12
$630.67
$630.67 - $630.67
$630.67

Couplamatic Systems Inc.
One or Two Wire Braids Hoses - HPI Domestic HY-PLUS I One Wire Dimension Hi-Pressure Extremely Flexible Hydraulic Hose - (SAE 100R17)

Package Quantity: 250 FT

Specifications for Variant SKU: 1/4" HPI Couplamatic | 250 |
Series: HPI Series
Hose Color(s): Black
Dash Size: -4
Internal Diameter: 0.25in
Outer Diameter: 0.535in
Applicable Specs & Approvals: Applicable MSHA Standards, SAE 100R17
Compatible with the following Series: Vari-Crimp Series  |   A Series  |   Grip Crimp Series
Applications: High Pressure Hydraulics, Industrial or Agricultural SAE Rating: SAE 100R17
Cover: Abrasion and Flame Resistant Cover, MSHA Approved Reinforcement: One or Two Wire Braids
Temperature: -40F to +212F (-40C to +100C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Reel Footage
1/4" HPI 1/4" 0.535" 3,000 lbs. 12,000 lbs. 2" 16 lbs. 250ft
3/8" HPI 3/8" 0.690" 3,000 lbs. 12,000 lbs. 2.5" 23 lbs. 250ft
1/2" HPI 1/2" 0.813" 3,000 lbs. 12,000 lbs. 3.5" 29 lbs. 250ft
3/4" HPI 3/4" 1.100" 3,000 lbs. 12,000 lbs. 5" 55 lbs. 250ft
1" HPI 1" 1.410" 3,000 lbs. 12,000 lbs. 6" 82 lbs. 250ft

*3000 PSI working pressure can eliminate stocking two hoses. Higher Pressure and More Flexible than 100R1*
