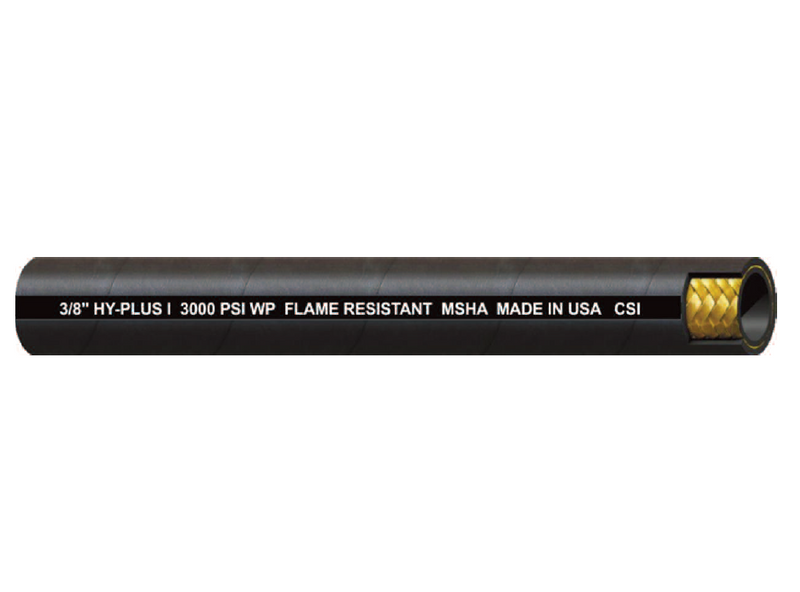

1" HPI Couplamatic Domestic HY-PLUS I One Wire Dimension Hi-Pressure Extremely Flexible Hydraulic Hose (SAE 100R17) - 1" ID - 250ft

1" HPI by Couplamatic | Domestic HY-PLUS I One Wire Dimension Hi-Pressure Extremely Flexible Hydraulic Hose | SAE 100R17 | 1" ID | 250ft

Save $1,564.45 Save $1,564.45
$3,911.12
$3,911.12 - $3,911.12
$3,911.12
$2,346.67
$2,346.67 - $2,346.67
$2,346.67

Couplamatic Systems Inc.
One or Two Wire Braids Hoses - HPI Domestic HY-PLUS I One Wire Dimension Hi-Pressure Extremely Flexible Hydraulic Hose - (SAE 100R17)

Package Quantity: 250 FT

Specifications for Variant SKU: 1" HPI Couplamatic | 250 |
Series: HPI Series
Hose Color(s): Black
Dash Size: -16
Internal Diameter: 1in
Outer Diameter: 1.41in
Applicable Specs & Approvals: Applicable MSHA Standards, SAE 100R17
Compatible with the following Series: Vari-Crimp Series  |   A Series  |   Grip Crimp Series
Applications: High Pressure Hydraulics, Industrial or Agricultural SAE Rating: SAE 100R17
Cover: Abrasion and Flame Resistant Cover, MSHA Approved Reinforcement: One or Two Wire Braids
Temperature: -40F to +212F (-40C to +100C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Reel Footage
1/4" HPI 1/4" 0.535" 3,000 lbs. 12,000 lbs. 2" 16 lbs. 250ft
3/8" HPI 3/8" 0.690" 3,000 lbs. 12,000 lbs. 2.5" 23 lbs. 250ft
1/2" HPI 1/2" 0.813" 3,000 lbs. 12,000 lbs. 3.5" 29 lbs. 250ft
3/4" HPI 3/4" 1.100" 3,000 lbs. 12,000 lbs. 5" 55 lbs. 250ft
1" HPI 1" 1.410" 3,000 lbs. 12,000 lbs. 6" 82 lbs. 250ft

*3000 PSI working pressure can eliminate stocking two hoses. Higher Pressure and More Flexible than 100R1*

Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
