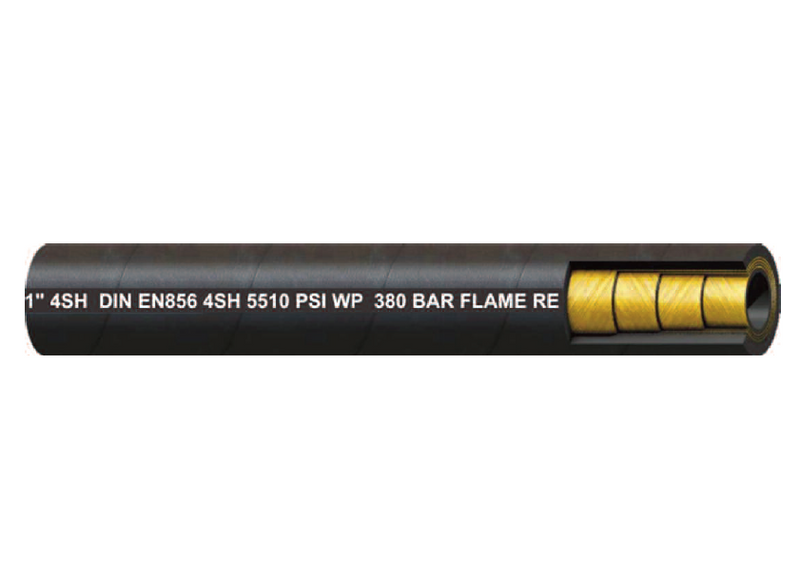

1" 4SH (EN856) Couplamatic Four Spiral Extra High Pressure Import Hydraulic Hose - 1" ID - Bulk

1" 4SH - EN856 by Couplamatic | Four Spiral Extra High Pressure | Import Hydraulic Hose | 1" ID | 50ft Bulk Length

Save $53.00 Save $53.00
$477.00
$477.00 - $477.00
$477.00
$424.00
$424.00 - $424.00
$424.00

Couplamatic Systems Inc.
4 High Tensile Steel Spirals - 4SH Four Spiral Extra High Pressure Import Hydraulic Hose - 4SH (EN856)
Specifications for Variant SKU: 1" 4SH Couplamatic | 50 |
Series: 4SH Series
Hose Color(s): Black
Dash Size: -16
Internal Diameter: 1in
Outer Diameter: 1.523in
Applicable Specs & Approvals: Applicable MSHA Standards
Compatible with the following Series: 6GC Series  |   4SH Series
Applications: Very High Pressure Hydraulics, Industrial or Agricultural SAE Rating: N/A
Cover: Abrasion and Flame Resistant Black Cover, MSHA Approved, White Layline Reinforcement: 4 High Tensile Steel Spirals
Temperature: -40F to +212F (-40C to +100C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Coil Footage
5/8" 4SH 5/8" 1.130" 6,090 lbs. 24,360 lbs. 9.5" 97 lbs. Bulk
3/4" 4SH 3/4" 1.268" 6,090 lbs. 24,360 lbs. 11" 112 lbs. Bulk
1" 4SH 1" 1.523" 5,510 lbs. 22,040 lbs. 13.5" 131 lbs. Bulk
1-1/4" 4SH 1-1/4" 1.791" 5,075 lbs. 20,300 lbs. 18" 181 lbs. Bulk
1-1/2" 4SH 1-1/2" 2.085" 4,205 lbs. 16,820 lbs. 22" 241 lbs. Bulk
