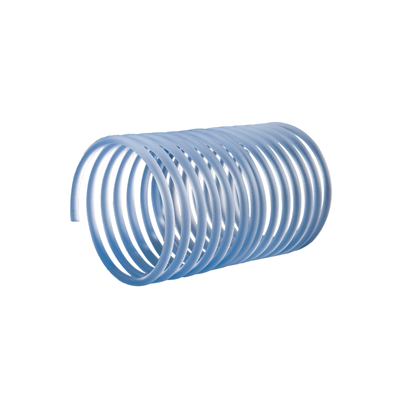

1.5-SLINKY by Texcel | SIGMA-COIL™ Series | Banding Coil | 1-1/2" Coil Diameter | PVC

1.5-SLINKY by Texcel | SIGMA-COIL™ Series | Banding Coil | 1-1/2" Coil Diameter | PVC

Save $1.61 Save $1.61
$5.63
$5.63 - $5.63
$5.63
$4.02
$4.02 - $4.02
$4.02

Texcel
SIGMA-COIL™ Series | Banding Coil
Specifications for Variant SKU: 1.5-SLINKY Texcel
Series: SIGMA-COIL™ Series
Material(s): PVC
Hose Accessories

SIGMA-COIL™ Banding Coils

Use banding coils to level external corrugations, or when using sleeves or bands, for increased surface area and improved compression and fitting retention.

1

How are banding coils used?

Each piece makes two hose ends (one hose assembly); the operator must cut it into two pieces. Recommended with SIGMA™ tank drop and vapor recovery hose, alongside or instead of SIGMA™ banding sleeves.

  • Leveling external corrugations
  • Sleeve and band clamp assemblies
  • Fitting retention
2

What are the key specifications?
Material

PVC

Yield

Two hose ends (one hose assembly) per piece

3

Which sizes are available?
Part Number Hose Diameter Length (in./each) Weight (lbs/each)
1.5-SLINKY 1-1/2" 2.75" 0.07
2.0-SLINKY 2" 3.0" 0.12
2.5-SLINKY 2-1/2" 3.25" 0.16
3.0-SLINKY 3" 3.5" 0.23
4.0-SLINKY 4" 3.75" 0.45
5.0-SLINKY 5" 6.0" 1.27
6.0-SLINKY 6" 8.0" 1.93
8.0-SLINKY 8" 8.5" 3.71
