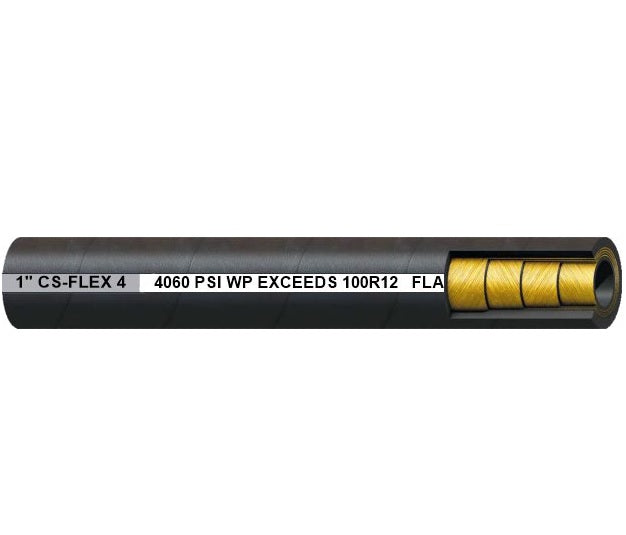

1" CS-FLEX 4 Couplamatic Four Spiral High Pressure Import Hydraulic Hose (SAE 100R12) - 1" ID - 50' Bulk Length

1" CS-FLEX 4 by Couplamatic | Four Spiral High Pressure Import Hydraulic Hose | SAE 100R12 | 1" ID | 50ft Bulk Length

Save $47.79 Save $47.79
$430.12
$430.12 - $430.12
$430.12
$382.33
$382.33 - $382.33
$382.33

Couplamatic Systems Inc.
4 High Tensile Steel Spirals - CS-FLEX 4 Four Spiral High Pressure Import Hydraulic Hose - (SAE 100R12)

Replaces RC12B

Reduced Bend Radius and Higher Working Pressures
Specifications for Variant SKU: 1" CS-FLEX 4 Couplamatic | 50 |
Series: CS-Flex 4 Series
Hose Color(s): Black
Dash Size: -16
Internal Diameter: 1.00in
Outer Diameter: 1.496in
Applicable Specs & Approvals: SAE 100R12, Applicable MSHA Standards
Applications: High Pressure Hydraulics, Industrial or Agricultural SAE Rating: SAE 100R12
Cover: Abrasion and Flame Resistant Black Cover, MSHA Approved Reinforcement: 4 High Tensile Steel Spirals
Temperature: -40F to +250F (-40C to +121C) Compatible Coupling Series: GW Series
4GC Series
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Coil Footage
1/2" CS-FLEX 4 1/2" 0.937" 4,060 lbs. 16,240 lbs. 3.5" 56 lbs. Bulk
5/8" CS-FLEX 4 5/8" 1.100" 4,060 lbs. 16,240 lbs. 4" 76 lbs. Bulk
3/4" CS-FLEX 4 3/4" 1.208" 4,060 lbs. 16,240 lbs. 4.75" 95 lbs. Bulk
1" CS-FLEX 4 1" 1.496" 4,060 lbs. 16,240 lbs. 6" 131 lbs. Bulk
1-1/4" CS-FLEX 4 1-1/4" 1.790" 4,060 lbs. 16,240 lbs. 8.25" 154 lbs. Bulk
1-1/2" CS-FLEX 4 1-1/2" 2.100" 4,060 lbs. 16,240 lbs. 10" 219 lbs. Bulk
Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
