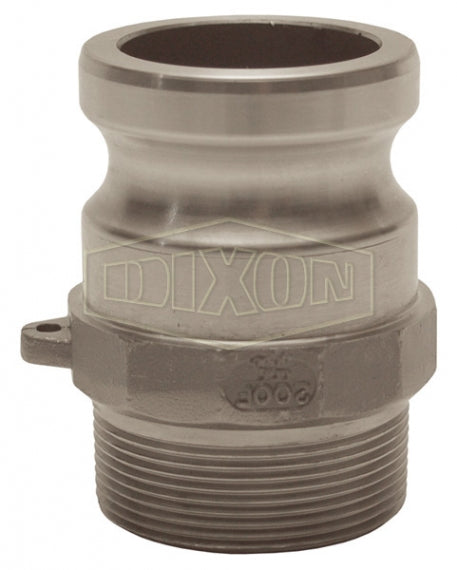

100-F-HA by Dixon Valve | Cam & Groove Adapter | Type F | 1" Adapter x 1" Male NPT | Hastelloy®

Name: 100-F-HA by Dixon Valve | Cam & Groove Adapter | Type F | 1" Adapter x 1" Male NPT | Hastelloy®
Brand: Dixon
SKU: 100-F-HA Dixon
Price: 175.25 USD
Availability: InStock

Save $16.17

$191.42

$191.42 - $191.42

$191.42

$175.25

$175.25 - $175.25

$175.25

Dixon Valve
Cam & Groove Fitting | Type F | Adapter x Male NPT | Hastelloy®

Designed for use with liquids.

Quantity

Specifications for Variant SKU: 100-F-HA Dixon
Shape (Orientation):	Straight
Cam Type:	Type F
Ends Configuration:	1in Male Cam & Groove, 1in Male NPT
Material(s):	Hastelloy

Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating is based on the seal of the mating part. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

Hastelloy® CW12MW Part Number	Size	Max. Operating Pressure
100-F-HA	1"	250 PSI
150-F-HA	1-1/2"	250 PSI
200-F-HA	2"	250 PSI
300-F-HA	3"	125 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
