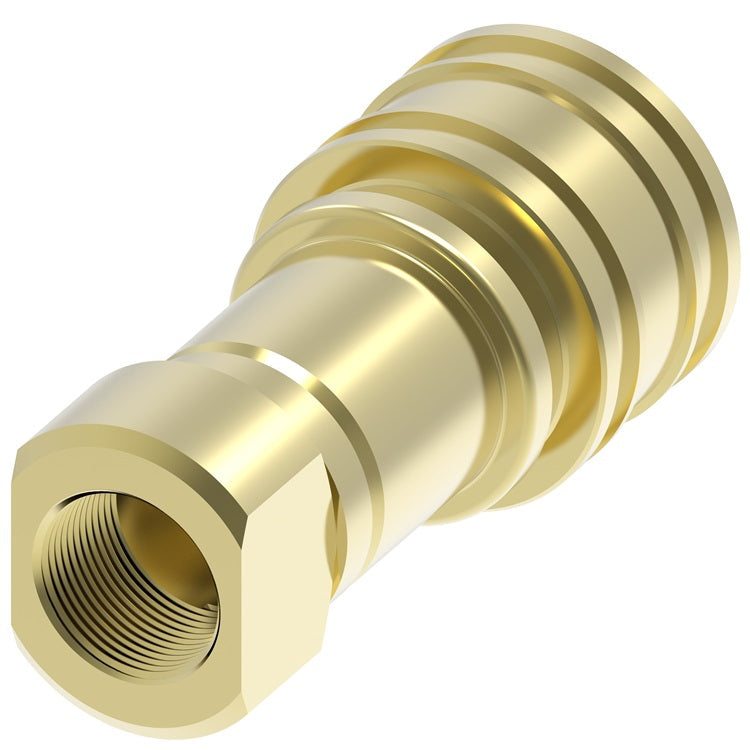

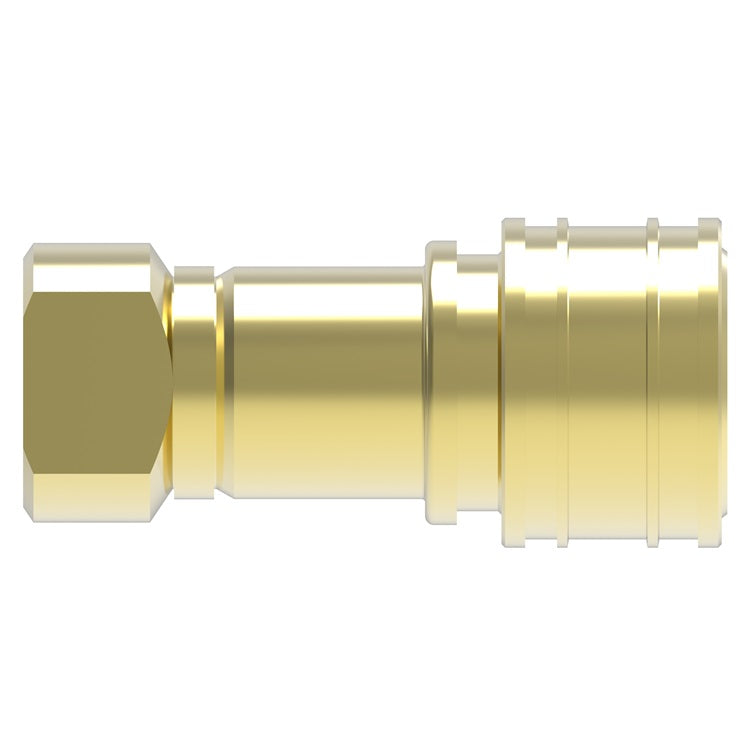

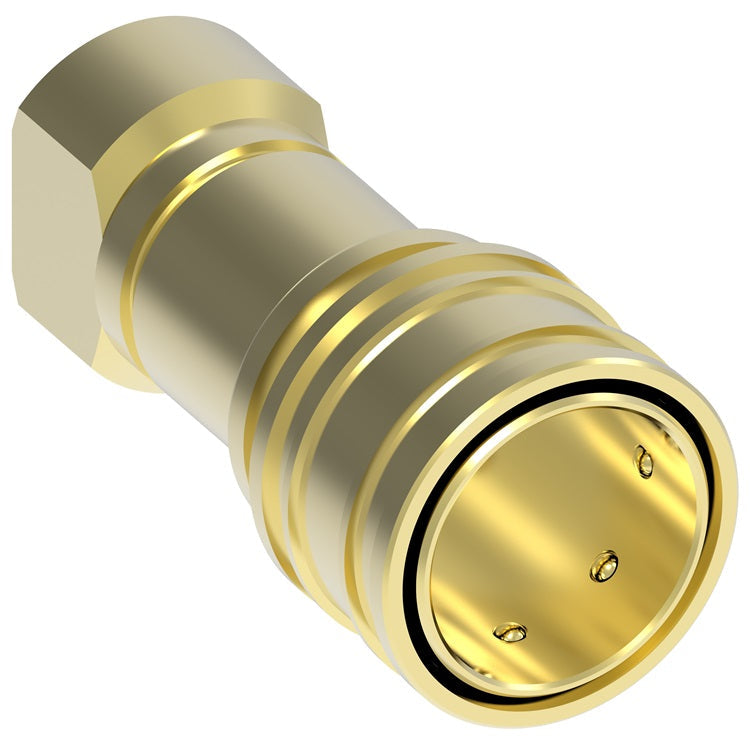

100006E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Gas-Mate Series | 3/8" Female NPTF x 3/8" Body Size | Socket | Buna-N Seal | Brass

100006E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Gas-Mate Series | 3/8" Female NPTF x 3/8" Body Size | Socket | Buna-N Seal | Brass

$36.47 - $36.47
$36.47
$36.47 - $36.47
$36.47

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | Gas-Mate Series

Quick Disconnect for Pneumatic Applications.

Danfoss' Gas-Mate™ Series quick disconnect couplings are a one-way shut-off safety couplings designed for the connection of gas fired devices or applications.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 100006E Danfoss
Brand: Hansen
Series: Gas-Mate Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Connect and disconnect without the need for wrenches.
  • Automatic shut off when plug is removed from socket.
  • In case of fire, heat sensitive plug allows socket valve to close, stopping gas flow.
Applications & Markets:
  • Industrial
  • Fuel Gas Systems
  • Food & Beverage
Materials:
  • Standard body material: Brass
  • Standard seal material: Buna-N
Specifications:
  • Tested to meet operating temperatures -40°F to 200°F (-40°C to 93°C) in sizes 3/8", 1/2", 3/4", and 1" when used in accordance with the CSA standard ANSI Z21.41b-2010/CSA 6.9b-2010 in both indoor and outdoor applications.
  • Complies with the requirements of ANSI Z21.41B-2010/CSA 6.96-2010. (CSA design certified, in both the United States and Canada, for natural gas, manufactured gas, liquified petroleum and LP gas-air mixtures at pressures not in excess of 1/2 psig (3.5 kPa).)
  • Please note that the 1-1/4" size coupling is rated for indoor use only.
Body Size Max. Operating Pressure Min. Burst Pressure
All Sizes 0.03 bar 0.50 psi 68 bar 1,000 psi
Capacities
Body Size Socket/Female P/N Plug/Male P/N Capacity*
3/8" 100006E 100506 60,000
1/2" 100008 100508 90,000
3/4" 100010 100510 245,000
1" 100012E 100512 310,000
1-1/4" GMS1250FH GMP1250F 500,000

* Capacity is based on natural gas having a specific gravity of 0.64 and heat capacity of 1,000 BTU per cubic foot. Inlet pressure is 12 inches water column and the pressure drop is 0.3 inch water column.
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
Socket/Female
(Figure 3)
Plug/Male
(Figure 4)
Gas-Mate Series | Socket
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
A B Across Flats/Hex
100006E Socket/Female 3/8" 3/8" 3/8-18 Female NPTF 1 2.44"
(62.0mm)		 1.13"
(28.7mm)		 0.87"
(22.1mm)
100008 Socket/Female 1/2" 1/2" 1/2-14 Female NPTF 1 2.84"
(72.1mm)		 1.38"
(35.1mm)		 1.00"
(25.4mm)
100010 Socket/Female 3/4" 3/4" 3/4-14 Female NPTF 1 3.17"
(80.5mm)		 1.75"
(44.5mm)		 1.31"
(33.3mm)
100012E Socket/Female 1" 1" 1-11 1/2 Female NPTF 1 3.94"
(100.1mm)		 2.13"
(54.1mm)		 1.50"
(38.1mm)
GMS1250FH* Socket/Female 1-1/4" 1-1/4" 1-1/4-11-1/2 Female NPTF 3 4.15"
(105.4mm)		 2.28"
(57.9mm)		 2.00"
(50.8mm)
Gas-Mate Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Figure Dimensions
A B Across Flats/Hex
100506 Plug/Male 3/8" 3/8" 3/8-18 Female NPTF 2 1.59"
(40.4mm)		 0.94"
(23.9mm)		 0.81"
(20.6mm)
100508 Plug/Male 1/2" 1/2" 1/2-14 Female NPTF 2 1.94"
(49.3mm)		 1.15"
(29.2mm)		 1.00"
(25.4mm)
100510 Plug/Male 3/4" 3/4" 3/4-14 Female NPTF 2 2.06"
(52.3mm)		 1.51"
(38.4mm)		 1.31"
(33.3mm)
100512 Plug/Male 1" 1" 1-11-1/2 Female NPTF 2 2.47"
(62.7mm)		 1.73"
(43.9mm)		 1.50"
(38.1mm)
GMP1250F* Plug/Male 1-1/4" 1-1/4" 1-1/4-11-1/2 Female NPTF 4 2.44"
(62.0mm)		 2.17"
(55.1mm)		 1.88"
(47.8mm)

*For indoor use only
