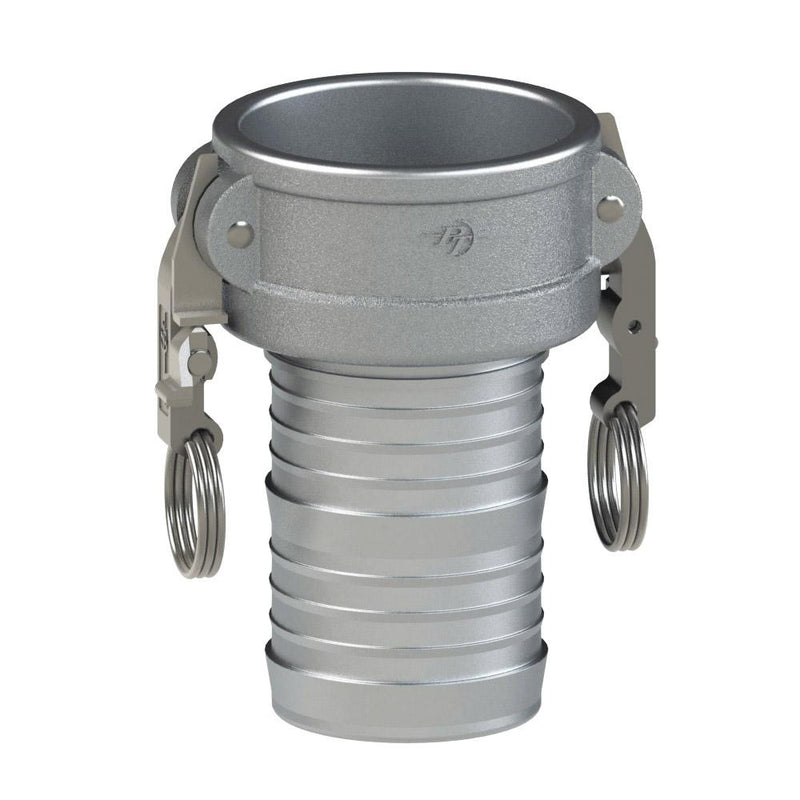

1000330L2 (30C SLII) by PT-Coupling | STA-LOK® II Cam & Groove Fitting | Type C | 3" Coupler x 3" Hose Shank | Aluminum/SLS | Buna-N Seal

Save $7.97

$71.70

$71.70 - $71.70

$71.70

$63.73

$63.73 - $63.73

$63.73

PT Coupling
STA-LOK® II Cam & Groove (Camlock) Fitting | Type C | Coupler x Hose Shank | Aluminum/SLS | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Quantity

Specifications for Variant SKU: 1000330L2 PT-Coupling
Series:	STA-LOK II
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	3in Female Cam & Groove, 3in Hose Barb
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Overview:
STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
SLS cam arms are made of 316 Stainless Steel. Pins, rings & the lock plate in STA-LOK® II couplings are 300 series Stainless Steel. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA


Part Name	Item #	Coupler Size	Hose Shank Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Min. Inside Diameter (E)	Max. Allowable Working Press. (PSI)*
10C SLII	1000310L2	1"	1"	5.10"	2.44"	4.06"	1.56"	0.78"	0.69"	250 PSI
12C-SLII	1000312L2	1-1/4"	1-1/4"	6.86"	3.26"	4.44"	1.84"	0.97"	0.88"	250 PSI
15C-SLII	1000315L2	1-1/2"	1-1/2"	7.16"	3.56"	4.82"	1.88"	1.22"	1.15	250 PSI
20C-SLII	1000320L2	2"	2"	7.54"	3.94"	5.53"	2.15"	1.71"	1.60"	250 PSI
25C-SLII	1000325L2	2-1/2"	2-1/2"	8.03"	4.43"	5.93"	2.18"	2.16"	2.06"	200 PSI
30C-SLII	1000330L2	3"	3"	9.56"	5.46"	6.32"	2.27"	2.65"	2.55"	200 PSI
40C-SLII	1000340L2	4"	4"	10.66"	6.56"	6.64"	2.34"	3.53"	3.43"	150 PSI
50C-SLII	1000350L2	5"	5"	11.67"	7.57"	7.24"	2.44"	4.53"	4.43"	75 PSI
60C-SLII	1000360L2	6"	6"	16.26"	10.16"	9.50"	2.70"	5.53"	5.43"	75 PSI

** Undersized Shank
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
