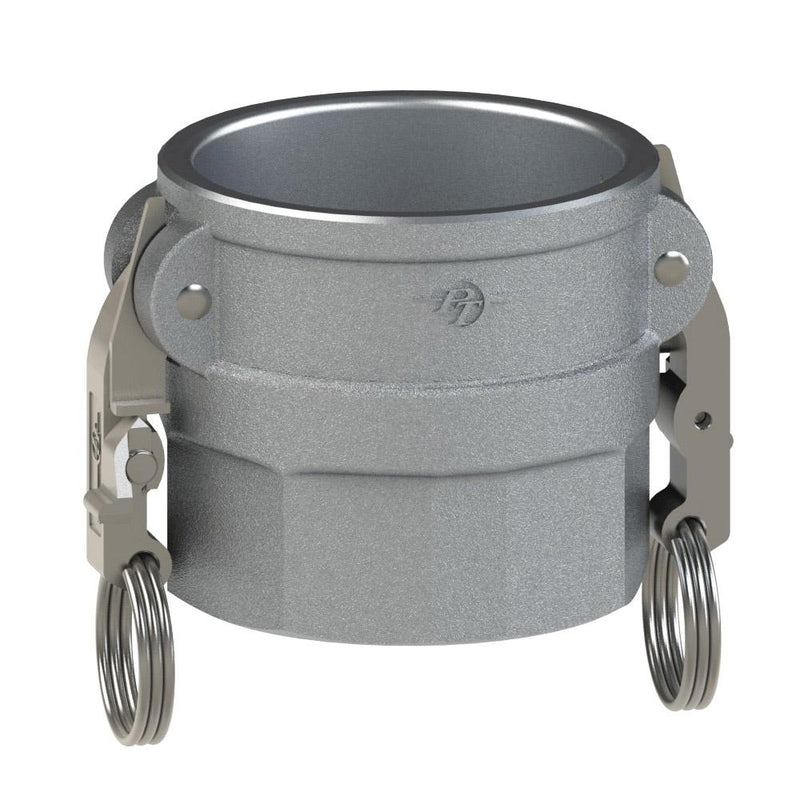

1000425L2 (25D SLII) by PT-Coupling | STA-LOK® II Cam & Groove Adapter | Type D | 2-1/2" Coupler x 2-1/2" Female NPT | Aluminum/SLS | Buna-N Seal

Save $35.07

$94.48

$94.48 - $94.48

$94.48

$59.41

$59.41 - $59.41

$59.41

PT Coupling
STA-LOK® II Cam & Groove (Camlock) Adapter | Type D | Coupler x Female NPT | Aluminum/SLS | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 1000425L2 PT-Coupling
Series:	STA-LOK II
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	2-1/2in Female Cam & Groove, 2-1/2in Female NPT
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Overview:
STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
SLS cam arms are made of 316 Stainless Steel. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA


Part Name	Item #	Coupler Size	Female NPT Thread	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Inside Diameter (E)	Max. Allowable Working Press. (PSI)*
10D SLII	1000410L2	1"	1"	5.10"	2.44"	2.50"	0.97"	250 PSI
12D SLII	1000412L2	1-1/4"	1-1/4"	6.86"	3.26"	2.70"	1.25"	250 PSI
15D SLII	1000415L2	1-1/2"	1-1/2"	7.16"	3.56"	2.80"	1.50"	250 PSI
20D SLII	1000420L2	2"	2"	7.54"	3.94"	3.10"	1.88"	250 PSI
25D SLII	1000425L2	2-1/2"	2-1/2"	8.03"	4.43"	3.40"	2.38"	200 PSI
30D SLII	1000430L2	3"	3"	9.56"	5.46"	3.50"	2.88"	200 PSI
40D SLII	1000440L2	4"	4"	10.66"	6.56"	3.90"	3.60"	150 PSI
50D SLII	1000450L2	5"	5"	11.67"	7.57"	4.10"	4.50"	75 PSI
60D SLII	1000460L2	6"	6"	16.26"	10.16"	4.40"	5.50"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
