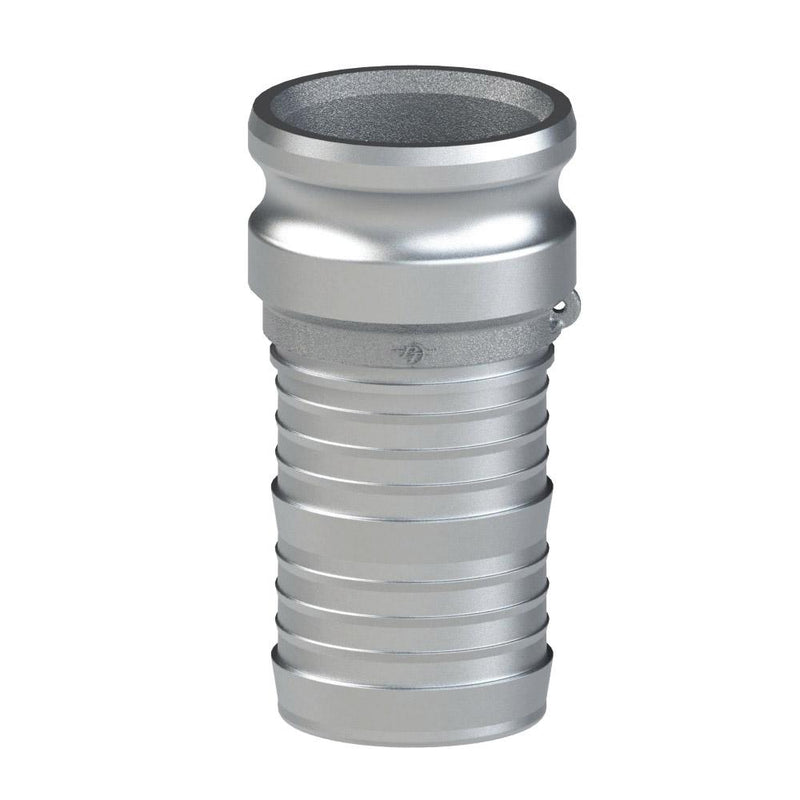

1000580 (80E) by PT-Coupling | Cam & Groove Fitting | Type E | 8" Adapter x 8" Hose Shank | Aluminum

Name: 1000580 (80E) by PT-Coupling | Cam & Groove Fitting | Type E | 8" Adapter x 8" Hose Shank | Aluminum
Brand: PT-Coupling
SKU: 1000580 PT-Coupling
Price: 491.53 USD
Availability: InStock

Save $290.19

$781.72

$781.72 - $781.72

$781.72

$491.53

$491.53 - $491.53

$491.53

PT Coupling
Cam and Groove (Camlock) Fitting | Type E | Adapter x Hose Shank | Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 1000580 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	8in Male Cam & Groove, 8in Hose Barb
Material(s):	Aluminum

Overview:
PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
PT hose shanks are the most versatile for attaching to hose. The specially designed multibarbed shank allows for attachment via original PUNCH-LOK® center punch clamps, or by an interlocked PROGRIP™ C-50 ferrule or sleeve. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Couplings not interchangeable in the industry are sizes 8" through 12". Made in the USA


Part Name	Item #	Adapter Size	Hose Shank Size	Outside Diameter (B)	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Engagement Length	Max. Allowable Working Press. (PSI)*
E05E	1000501	1/2"	1/2"	0.96"	2.56"	1.11"	0.38"	1.03"	250 PSI
07E	1000507	3/4"	3/4"	1.26"	3.78"	1.46"	0.53"	0.97"	250 PSI
10E	1000510	1"	1"	1.63"	4.30"	1.8"	0.88"	1.19"	250 PSI
12E	1000512	1-1/4"	1-1/4"	2.00"	4.90"	2.35"	0.97"	1.44"	250 PSI
15E	1000515	1-1/2"	1-1/2"	2.14"	5.10"	2.15"	1.19"	1.48"	250 PSI
20E	1000520	2"	2"	2.64"	5.75"	2.40"	1.68"	1.75"	250 PSI
25E	1000525	2-1/2"	2-1/2"	3.07"	6.63"	2.47"	2.13"	1.75"	200 PSI
30E	1000530	3"	3"	3.70"	6.88"	2.53"	2.62"	1.84"	200 PSI
40E	1000540	4"	4"	4.71"	7.20"	2.60"	3.50"	1.87"	150 PSI
50E	1000550	5"	5"	6.56"	7.56"	2.81"	4.53"	1.97"	75 PSI
60E	1000560	6"	6"	7.10"	10.10"	3.3"	5.53"	2.19"	75 PSI
80E	1000580	8"	8"	9.10"	10.10"	3.3"	7.53"	2.15"	50 PSI
100E	1000590	10"	10"	11.37"	11.70"	2.88"	9.4"	2.55"	50 PSI
120E	1000592	12"	12"	13.46"	11.70"	2.88"	11.4"	2.55"	50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
