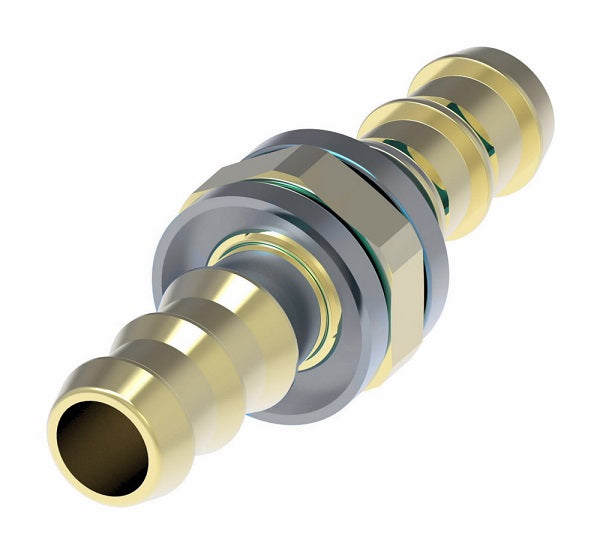

10005B-Y05 Weatherhead by Danfoss | Hose Mender Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -05 Push-On Hose Barb x -05 Push-On Hose Barb | Brass
10005B-Y05 Weatherhead by Danfoss | Hose Mender Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -05 Push-On Hose Barb x -05 Push-On Hose Barb | Brass
10005B-Y05 Weatherhead by Danfoss | Hose Mender Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -05 Push-On Hose Barb x -05 Push-On Hose Barb | Brass
10005B-Y05 Weatherhead by Danfoss | Hose Mender Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -05 Push-On Hose Barb x -05 Push-On Hose Barb | Brass

10005B-Y05 Weatherhead by Danfoss | Hose Mender Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -05 Push-On Hose Barb x -05 Push-On Hose Barb | Brass

$6.26 - $6.26
$6.26
$6.26 - $6.26
$6.26

Weatherhead by Danfoss
Push-On Field Attachable Fitting - 100 'B' Series Barb-Tite - Hose Mender - Straight

Ideal Fitting for low pressure shop or service air lines. Often used for low pressure lube and oil lines.

Easy to assemble - just push the Fitting into the hose. No clamps needed.
Specifications for Variant SKU: 10005B-Y05 Danfoss
Shape (Orientation): Straight
Ends Configuration: 5/16in Push-On Hose Barb, 5/16in Push-On Hose Barb, Some Ends Match
Material(s): Brass
Compatible with the following Series: H100 Series  |   H101 Series  |   H201 Series  |   H332 Series  |   35FH Series
Note:
  • Pressure: Determined by maximum working pressure for hose size.
  • CAUTION: Sealing integrity may be damaged by the use of clamps.
  • Label Set: FS-500
Material:
  • CA360 Brass
Compatible Hose:
  • H100, H101, H201, H332, 35FH
Assembly instructions:
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
  • 1. Lubricate insert.
  • 2. Hold hose at angle as shown and push on and up over first barb.
  • 3. Continue to push straight on until hose is seated under protective plastic cap. (Keep hand back from hose end area so that hose can expand.)
  • Assembly Lubricant:
Disassembly instructions:
  • 1. Split hose as shown. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2. Bend hose and remove with quick pull.
Brass
Part Number 		Hose
I.D.		 A Hose Cut-off
Factor		 Hole
Diameter		 Hex
E
10004B-Y04 1/4" 1.86" 0.38" 0.172" 1/2"
10005B-Y05 5/16" 2.04" 0.44" 0.234" 9/16"
10006B-Y06 3/8" 2.14" 0.44" 0.297" 5/8"
10008B-Y08 1/2" 2.46" 0.50" 0.391" 3/4"
10010B-Y10 5/8" 3.61" 0.53" 0.48" 1-1/8"
10012B-Y12 3/4" 3.63" 0.60" 0.61" 1-1/4"

Note: Drawings may differ from actual parts.
