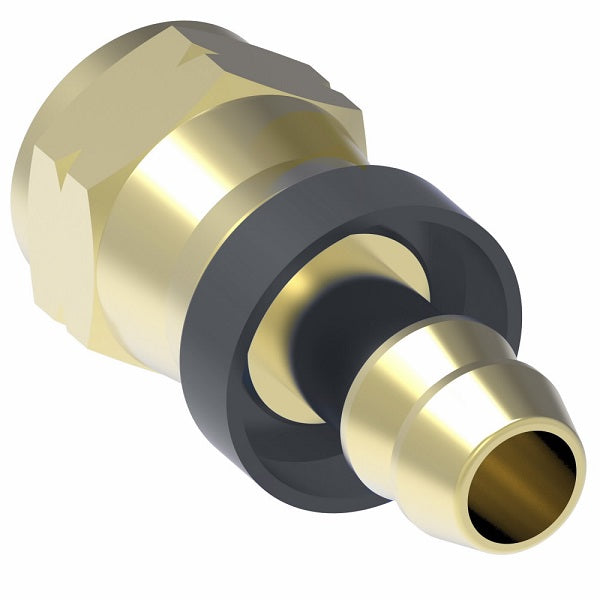

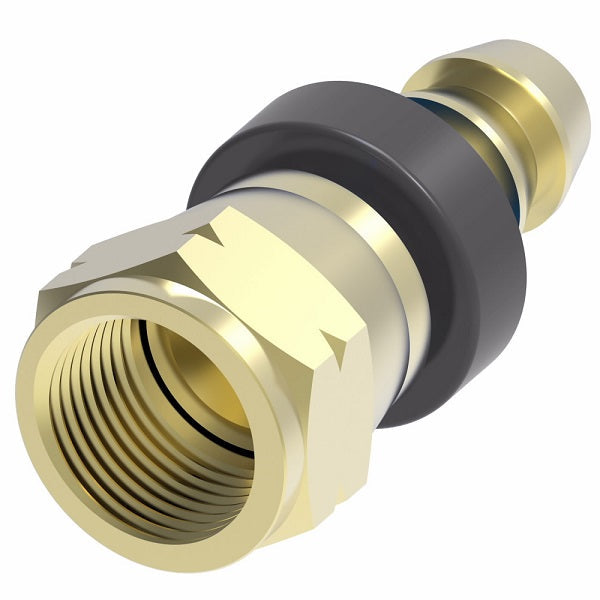

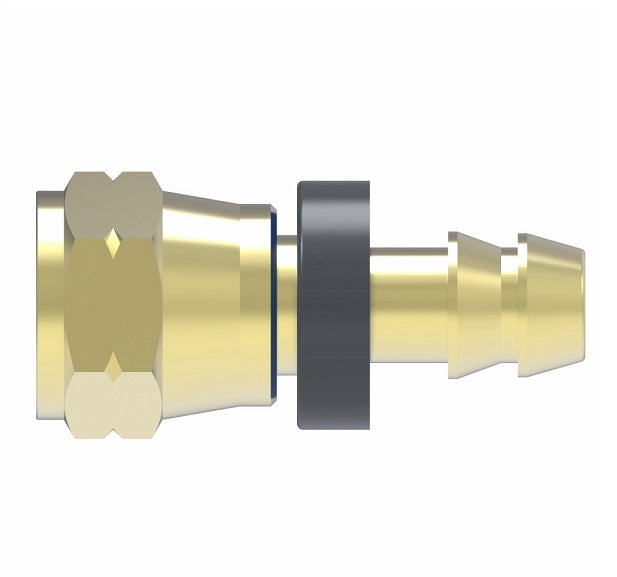

10006B-406 Weatherhead by Danfoss | Female SAE 45° Flare Swivel Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -06 Female SAE 45° Flare Swivel x -06 Push-On Hose Barb | Brass

10006B-406 Weatherhead by Danfoss | Female SAE 45° Flare Swivel Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -06 Female SAE 45° Flare Swivel x -06 Push-On Hose Barb | Brass

$4.42 - $4.42
$4.42
$4.42 - $4.42
$4.42

Weatherhead by Danfoss
Push-On Field Attachable Fitting - 100 'B' Series Barb-Tite - Female SAE 45° Flare Swivel - Straight

Ideal Fitting for low pressure shop or service air lines. Often used for low pressure lube and oil lines.

Easy to assemble - just push the Fitting into the hose. No clamps needed.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 10006B-406 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Female SAE 45 Flare, 3/8in Push-On Hose Barb, Some Ends Match
Material(s): Brass
Special Properties: Swivel
Compatible with the following Series: H100 Series  |   H101 Series  |   H201 Series  |   H332 Series  |   35FH Series
Note:
  • Pressure: Determined by maximum working pressure for hose size.
  • CAUTION: Sealing integrity may be damaged by the use of clamps.
  • Label Set: FS-500
Material:
  • CA360 Brass
Compatible Hose:
  • H100, H101, H201, H332, 35FH
Assembly instructions:
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
  • 1. Lubricate insert.
  • 2. Hold hose at angle as shown and push on and up over first barb.
  • 3. Continue to push straight on until hose is seated under protective plastic cap. (Keep hand back from hose end area so that hose can expand.)
  • Assembly Lubricant:
Disassembly instructions:
  • 1. Split hose as shown. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2. Bend hose and remove with quick pull.
Brass
Part Number 		Hose
I.D.		 Tube
Size		 Thread
Size		 A Hose Cut-off
Factor		 Hole
Diameter		 Hex
F
10006B-406 3/8" 3/8" 5/8-18 1.73" 0.88" 0.297" 3/4"

Note: Drawings may differ from actual parts.
