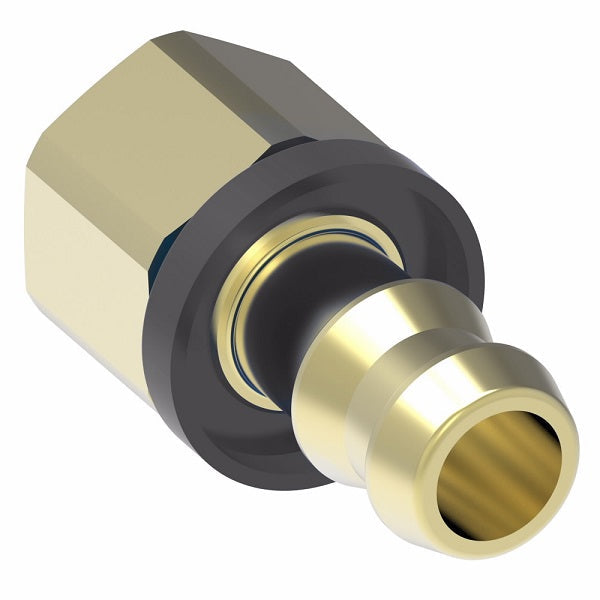

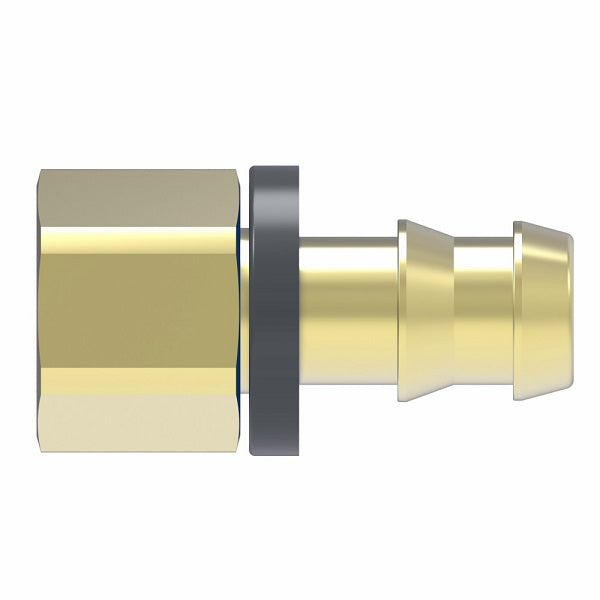

10006B-A06 Weatherhead by Danfoss | Female Inverted Rigid Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -06 Female Inverted x -06 Push-On Hose Barb | Brass

10006B-A06 Weatherhead by Danfoss | Female Inverted Rigid Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -06 Female Inverted x -06 Push-On Hose Barb | Brass

Name: 10006B-A06 Weatherhead by Danfoss | Female Inverted Rigid Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -06 Female Inverted x -06 Push-On Hose Barb | Brass
Brand: Danfoss/Eaton
SKU: 10006B-A06 Danfoss
Price: 11.58 USD
Availability: InStock

$11.58 - $11.58

$11.58

$11.58 - $11.58

$11.58

Weatherhead by Danfoss
Push-On Field Attachable Fitting - 100 'B' Series Barb-Tite - Female Inverted Rigid - Straight

Ideal Fitting for low pressure shop or service air lines. Often used for low pressure lube and oil lines.

Easy to assemble - just push the Fitting into the hose. No clamps needed.

Quantity

Specifications for Variant SKU: 10006B-A06 Danfoss
Shape (Orientation):	Straight
Material(s):	Brass
Compatible with the following Series:	H100 Series \| H101 Series \| H201 Series \| H332 Series \| 35FH Series

Note:
Pressure: Determined by maximum working pressure for hose size. CAUTION: Sealing integrity may be damaged by the use of clamps. Label Set: FS-500
Material:
CA360 Brass
Compatible Hose:
H100, H101, H201, H332, 35FH
Assembly instructions:
To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly. 1. Lubricate insert. 2. Hold hose at angle as shown and push on and up over first barb. 3. Continue to push straight on until hose is seated under protective plastic cap. (Keep hand back from hose end area so that hose can expand.) Assembly Lubricant: 1 Gallon: 222070-8 1 Pint: 222070
Disassembly instructions:
1. Split hose as shown. Do not cut completely through hose. Sealing edge of barb could be damaged. 2. Bend hose and remove with quick pull.


Brass Part Number	Hose I.D.	Tube Size	Thread Size	A	Hose Cut-off Factor	Hole Diameter	Hex F
10004B-A03	1/4"	3/16"	3/8-24	1.12"	0.48"	0.172"	1/2"
10004B-A04	1/4"	1/4"	7/16-24	1.14"	0.50"	0.172"	9/16"
10004B-A05	1/4"	5/16"	1/2-20	1.18"	0.56"	0.172"	5/8"
10005B-A05	5/16"	5/16"	1/2-20	1.25"	0.56"	0.220"	5/8"
10006B-A05	3/8"	5/16"	1/2-20	1.32"	0.55"	0.297"	5/8"
10006B-A06	3/8"	3/8"	5/18-18	1.35"	0.63"	0.297"	3/4"
10008B-A08	1/2"	1/2"	3/4-18	1.73"	0.75"	0.391"	7/8"

Note: Drawings may differ from actual parts.
